Tektronix AFG31000 Series User Manual

Function introduction
92 AFG31000 Series Arbitrary Function Generator User's Manual

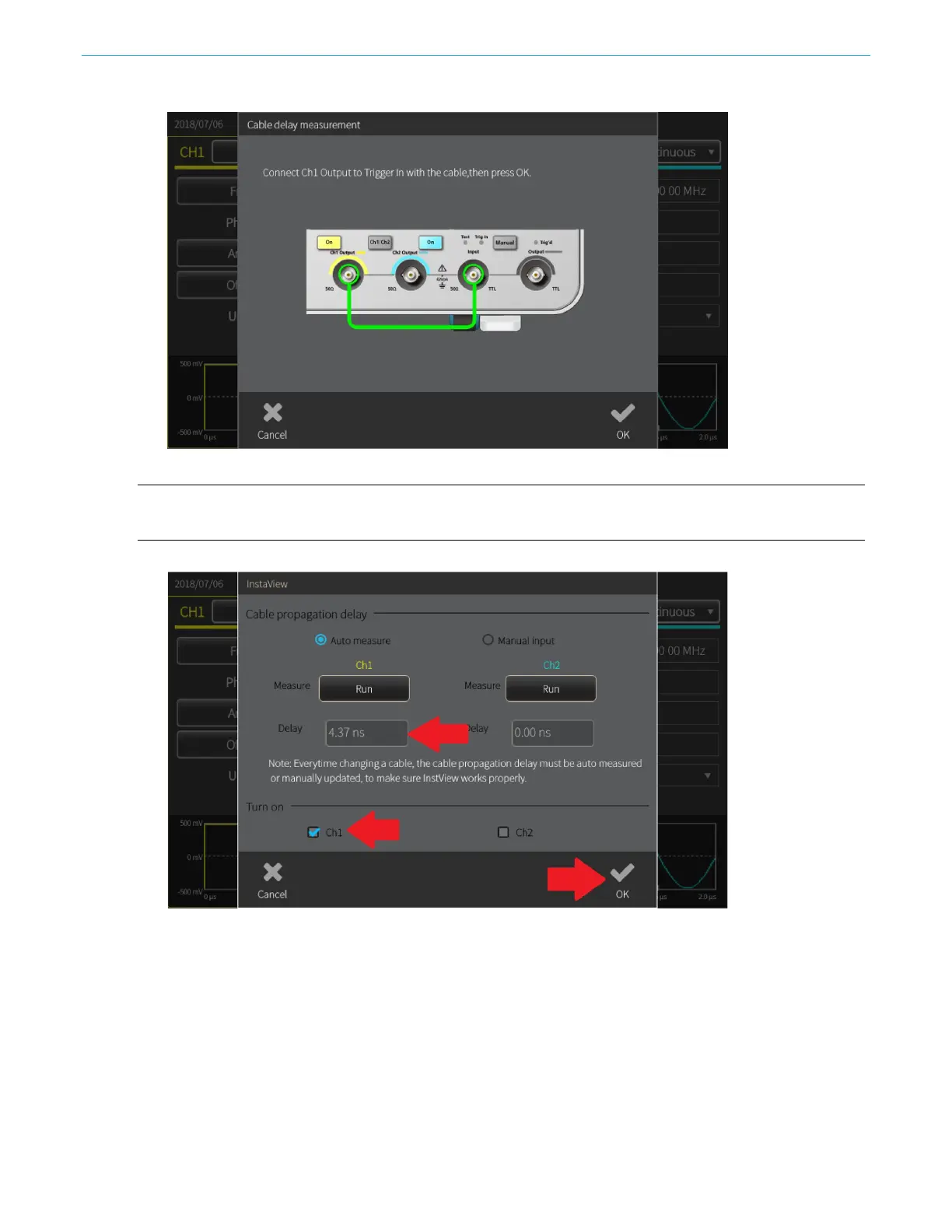

Figure 69: BNC trigger connect - InstaView
NOTE. The propagation delay shows you when the reflection is going to reach the AFG output port. In
case of impedance mismatching, the instrument algorithm can separate the incident from the reflection.
4. When the measurement is done, the delay is reflected in the dialog box.
Figure 70: Delay dialog
5. Select CH1 and select OK to close the window.
6. Connect the BNC cable directly to the oscilloscope CH1 input again.
