Suspension strut is attached to the body by 4
retaining lugs in addition to the bolts. To remove, turn
suspension strut until retaining lugs are positioned
above the cut-outs.

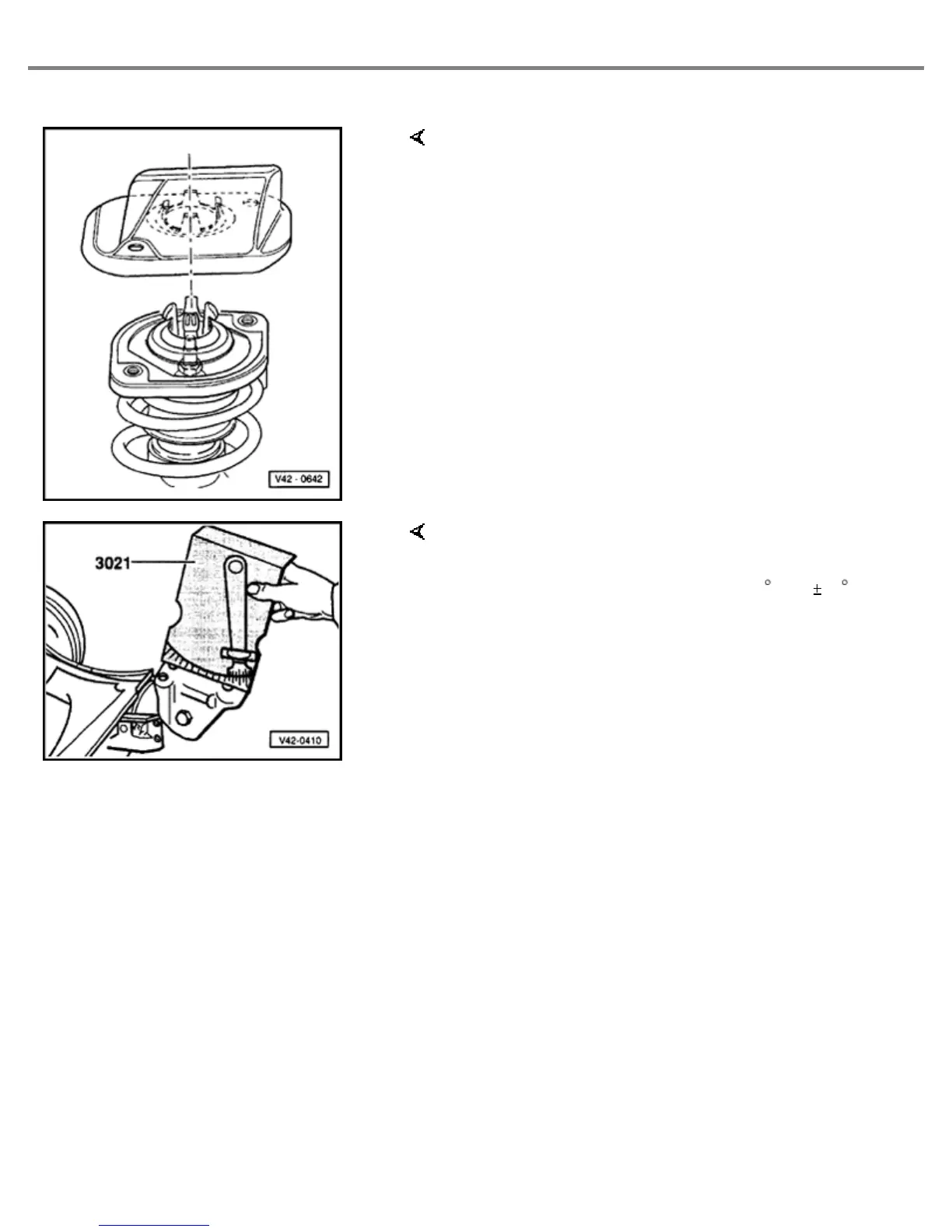

Fig. 3 Suspension strut, removing and
installing
Angle of inclination to axle beam 13 30' 1.
Fig. 4 Bolting mounting bracket to axle beam
Page
5
of
14
Rear Wheel Suspension, Shafts and Axle
