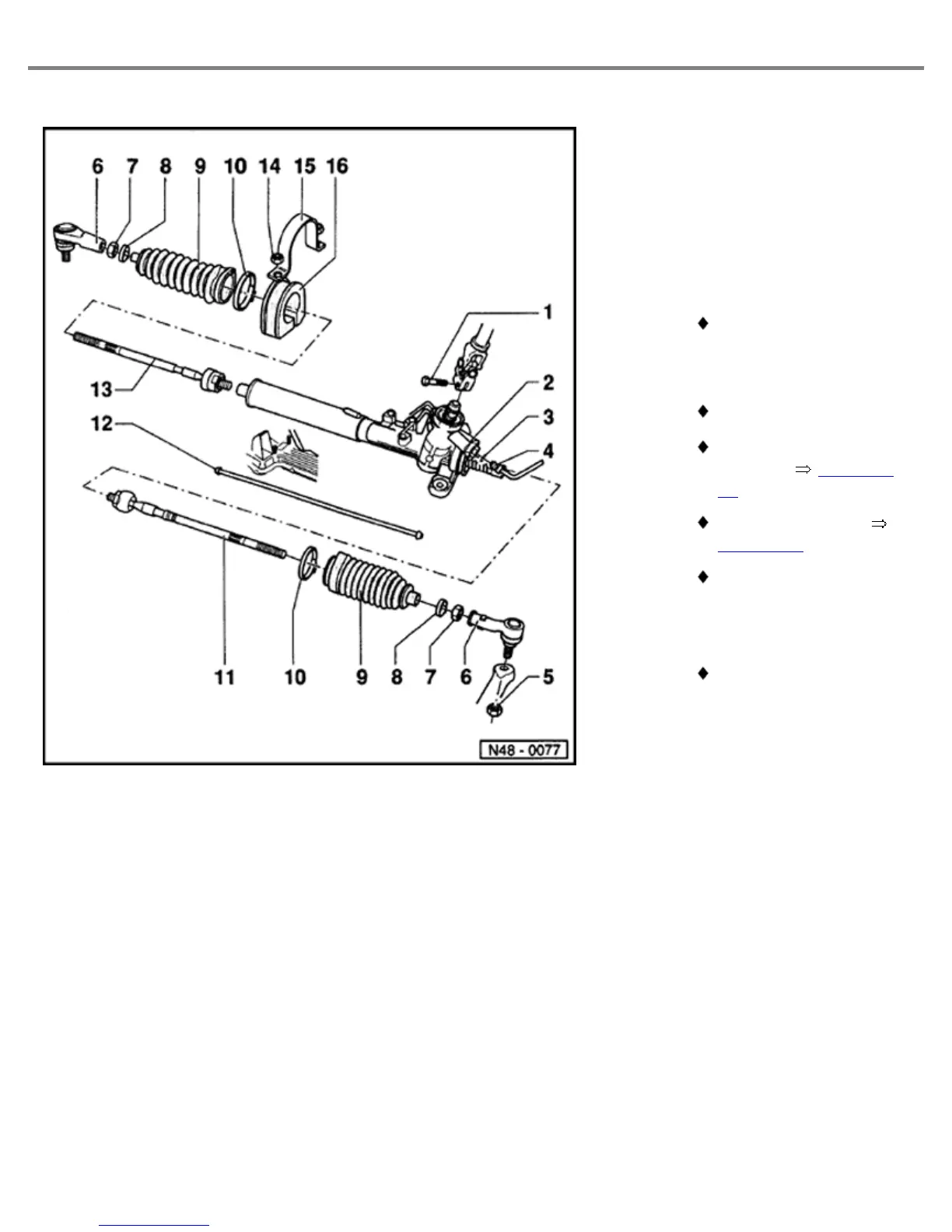

48-20
1 - Self-locking nut 35 Nm
(26 ft lb)
2 - Self-locking 30 Nm (22
ft lb)
3 - Clamp
4 - Rubber mounting
Internal diameter ZF:
50 mm TRW: 44 mm
5 - Right-hand tie rod
70 Nm (52 ft lb)
Removing and
installing Page 48-
77
Vehicle alignment
Page 44-1
Tie rod boot seat
diameter ZF: 15 mm
dia. TRW: 12.7 mm
dia.
It must not be installed
on a ZF power
steering gear
Page
20
of
99
Steering
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.48.1
