Power steering gear, assembling
Note;
All sealing rings should be lubricated with
hydraulic oil before installing.
- Check whether the valve body housing -2- is
absolutely clean on the inside, otherwise clean

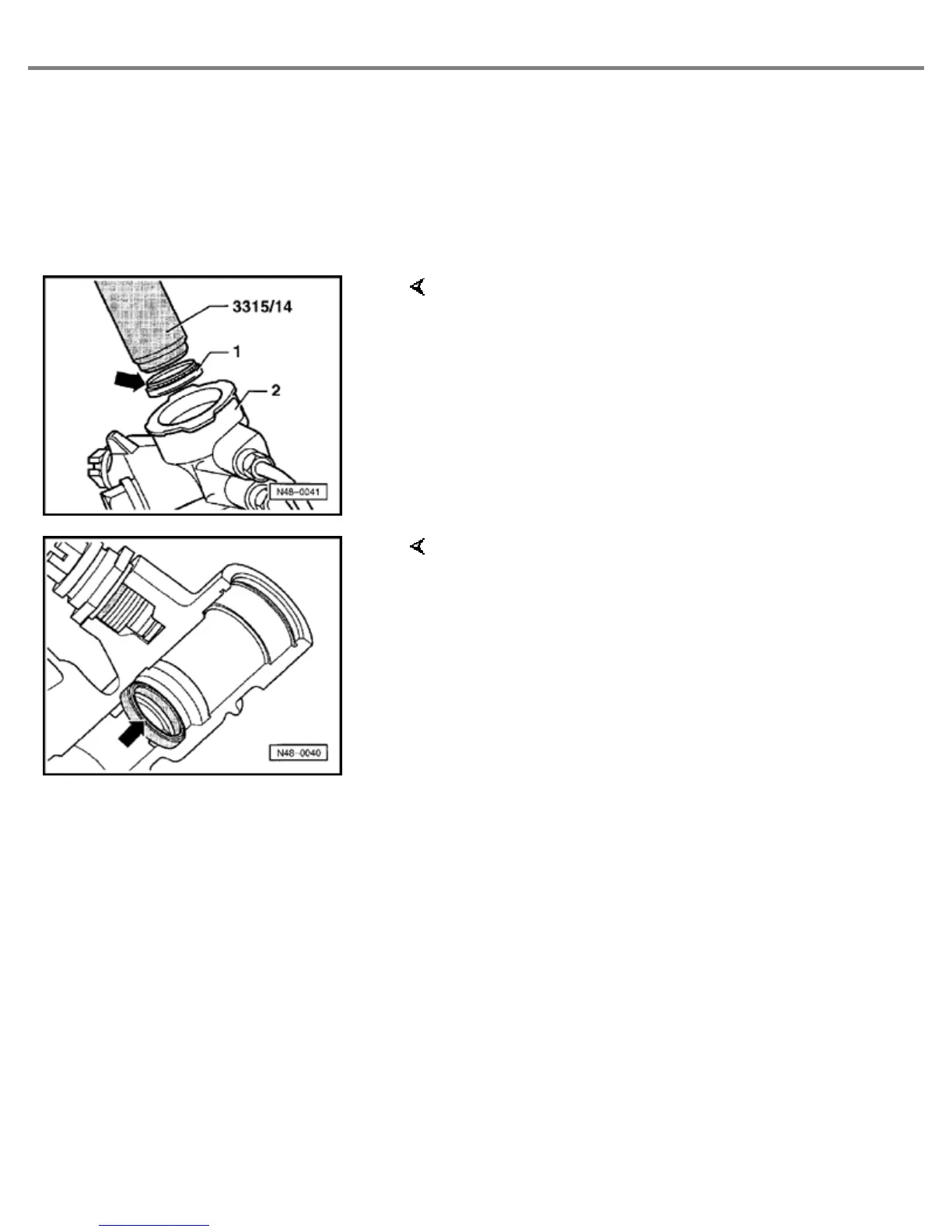

- Place sealing ring -1- on tool. The sealing lip -
arrow- points toward tool
- Drive sealing ring into stop
1 - Sealing ring
2 - Valve body housing
- Make sure correct installation position of sealing
ring in valve body
- For better view, illustration shows valve tower in
cross section
