Volkswagen Passat 1996 User Manual

48-86

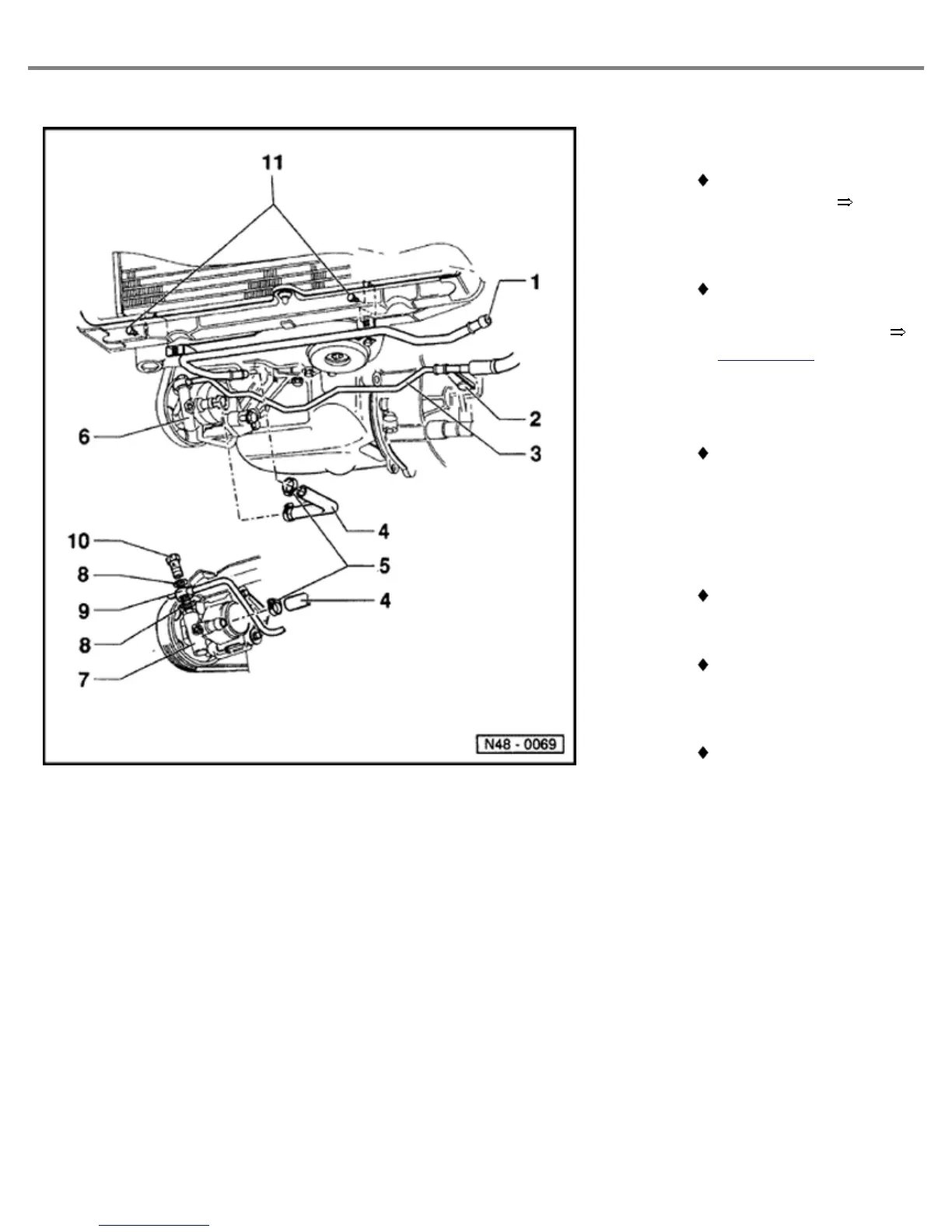

1 - Cooling line
Secured to
crossmember item
9
2 - Bracket
Various versions
depending on
engine/transmission
Page 48-96
3 - Pressure line
4 - Suction line
Hydraulic pump -
Cooling line
5 - Hose clamp, 3 Nm (27
in lb)
6 - Hydraulic pump
With V-belt pulley
7 - Hydraulic pump
With ribbed belt
sprocket
8 - O-ring
Always replace
Page
86
of
99
Steering
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.48.1
