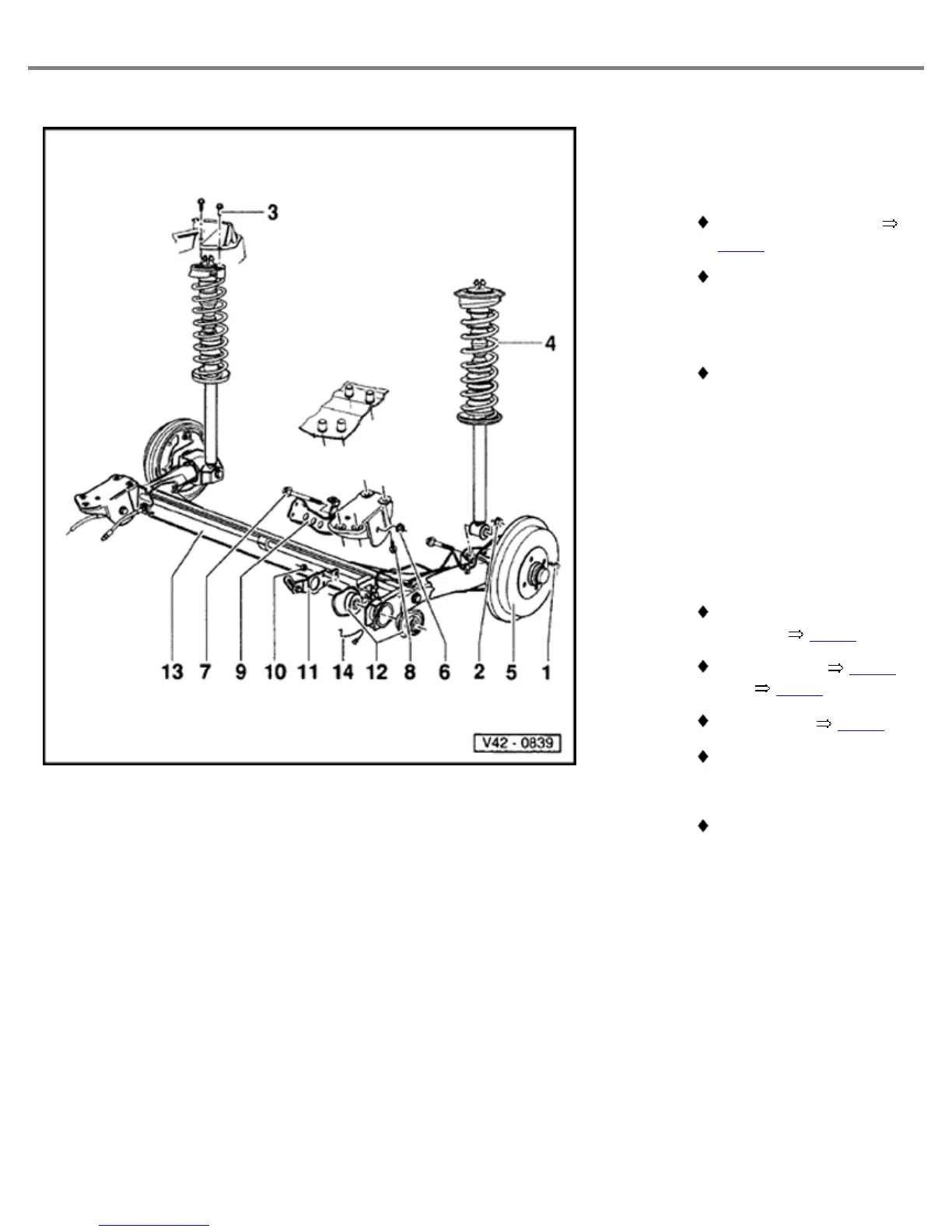

9 - Mounting bracket with
retainer for brake
pressure regulator
Installation position
Fig. 4
Check and if
necessary adjust rear
axle total toe after
installation
If possible do not
loosen when removing
the rear axle
10 - Hex nut/washer, 35 Nm
(26 ft lb)
11 - Regulator spring
bracket
12 - Bonded rubber
mounting
Note installation
position Fig. 7
Pressing out Fig. 5
and Fig. 6
Pressing in Fig. 8
Only replace as pair
13 - Axle beam
Stub axle contact
surfaces and threaded
holes are to be free of
paint and dirt
14 - Parking brake cable
bracket
