Volkswagen Passat 1996 User Manual

48-47

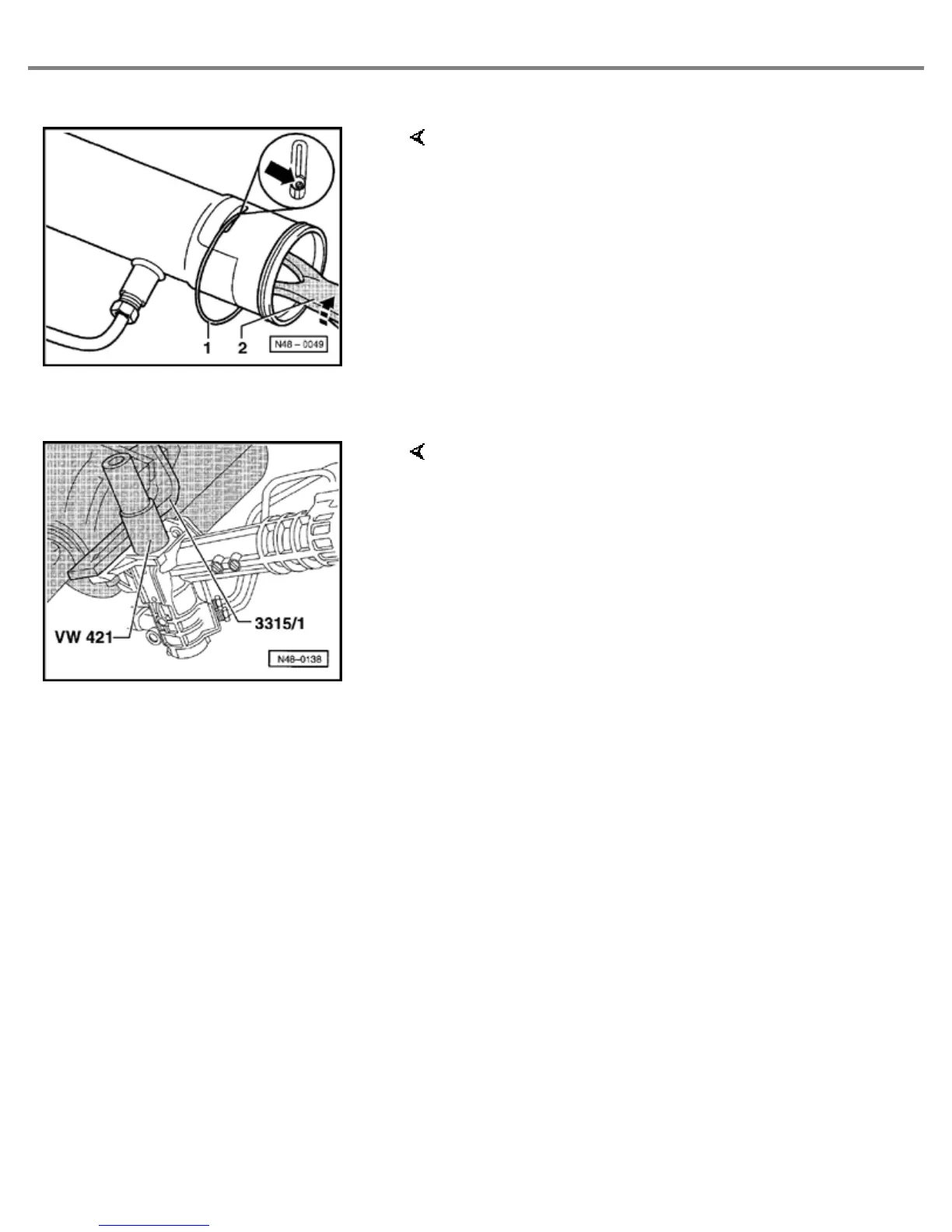

- Place lock washer in the housing and press in far
enough until the groove in the lock washer in the
slot of the housing is visible
- Install new safety wire in the hole of the lock
washer (arrow)
-
Pull safety wire in by turning the lock washer. (after
pulling in, turn the lock washer approx. 1/2
revolution further)
1 - Safety wire in repair kit is not formed as a ring,
but supplied as a straight wire
2 - Pliers (standard commercial)
Valve body, installing
Ball bearing must not be tipped when driving in
- Carefully drive lower ball bearing for valve body
into stop
Page
47
of
99
Steering
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.48.1
