47-3
7 - Sealing ring
Always replace
8 - Self-
locking hex nut, 20
Nm (15 ft lb)
9 - Brake master cylinder
Cannot be repaired. If
faulty, replace
complete.
10 - Sealing plug
Moisten with brake
fluid and press into
reservoir
11 - Seal
Page
3
of
4

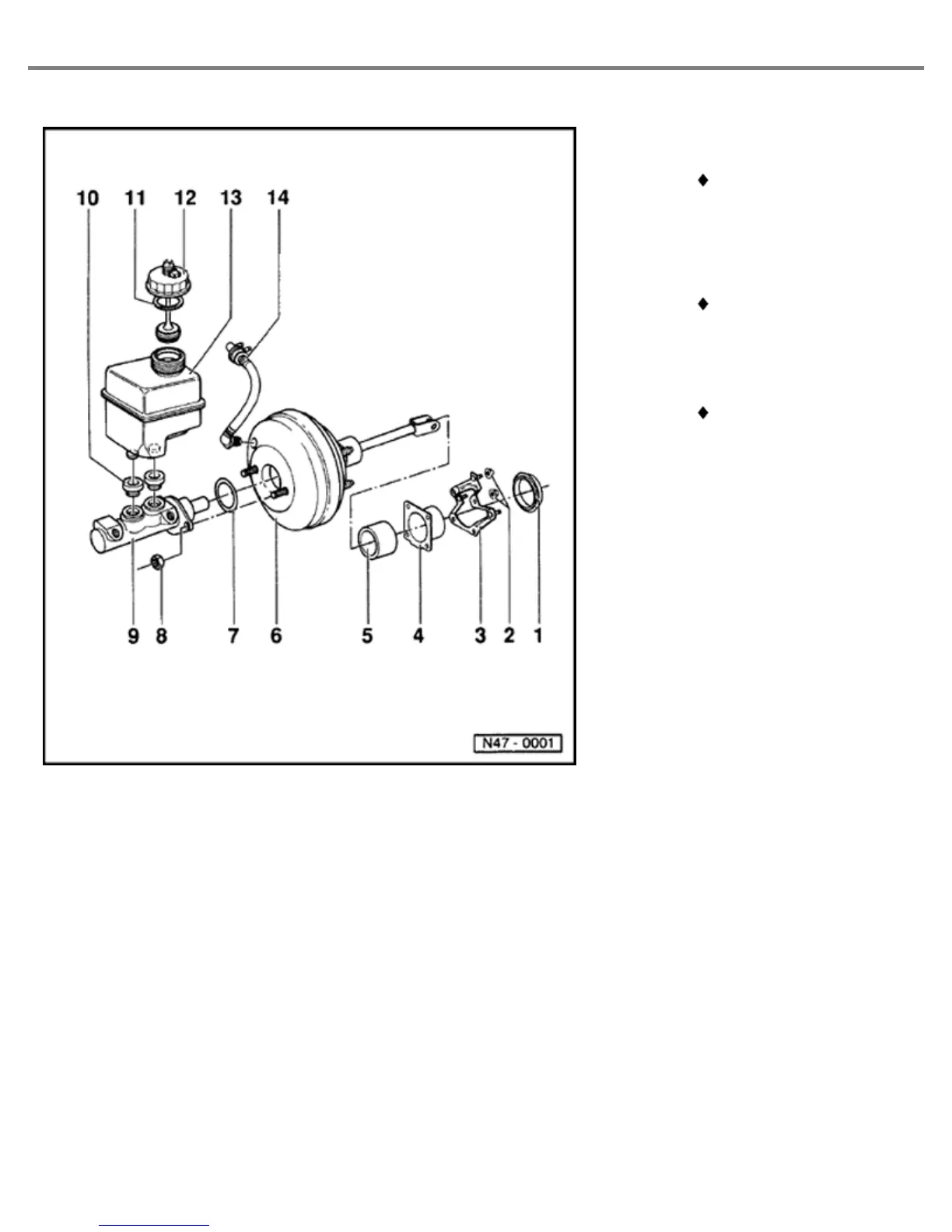

Assembly overview: brake master cylinder/brake servo
12/7/2004
