Volkswagen Passat 1996 User Manual

46-42
Repair Manual, 5 Spd.
Manual Transmission 02A,
Repair Group 30
Repair Manual, 5 Spd.
Manual Transmission 02A,
Repair Group 30

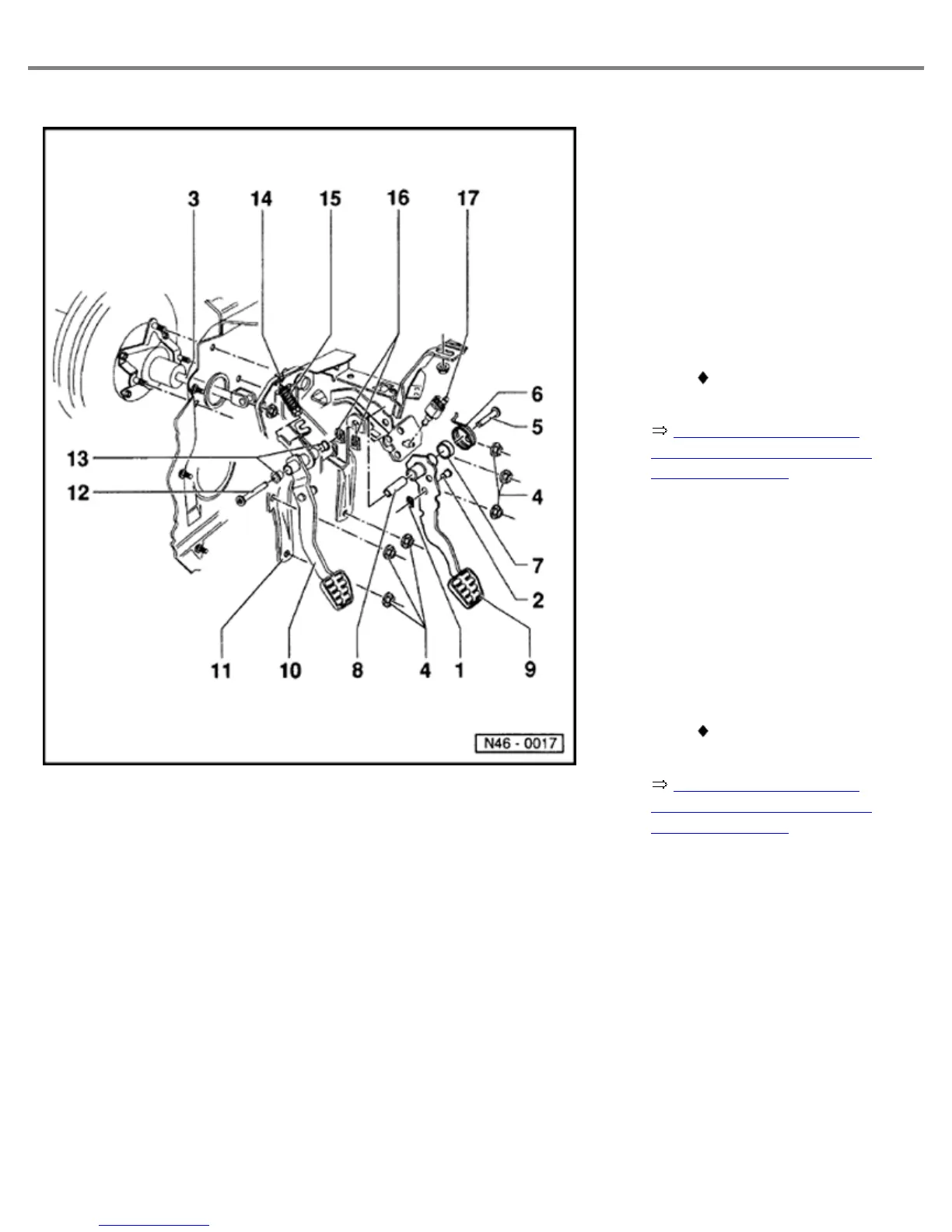

6 - Brake pedal return
spring
7 - Return spring
mounting tube
8 - Brake pedal mounting
bushing
9 - Brake pedal
10 - Clutch pedal
Removing and
installing
11 -
Pedal cluster mounting
bracket
12 - Clutch pedal pivot pin
13 - Clutch pedal mounting
bushing
14 - Over-center spring
mounting
15 - Over-center spring
Before removing,
remove clutch pedal
Page
6
of
9
Parking brake lever assembly overview
12/7/2004
