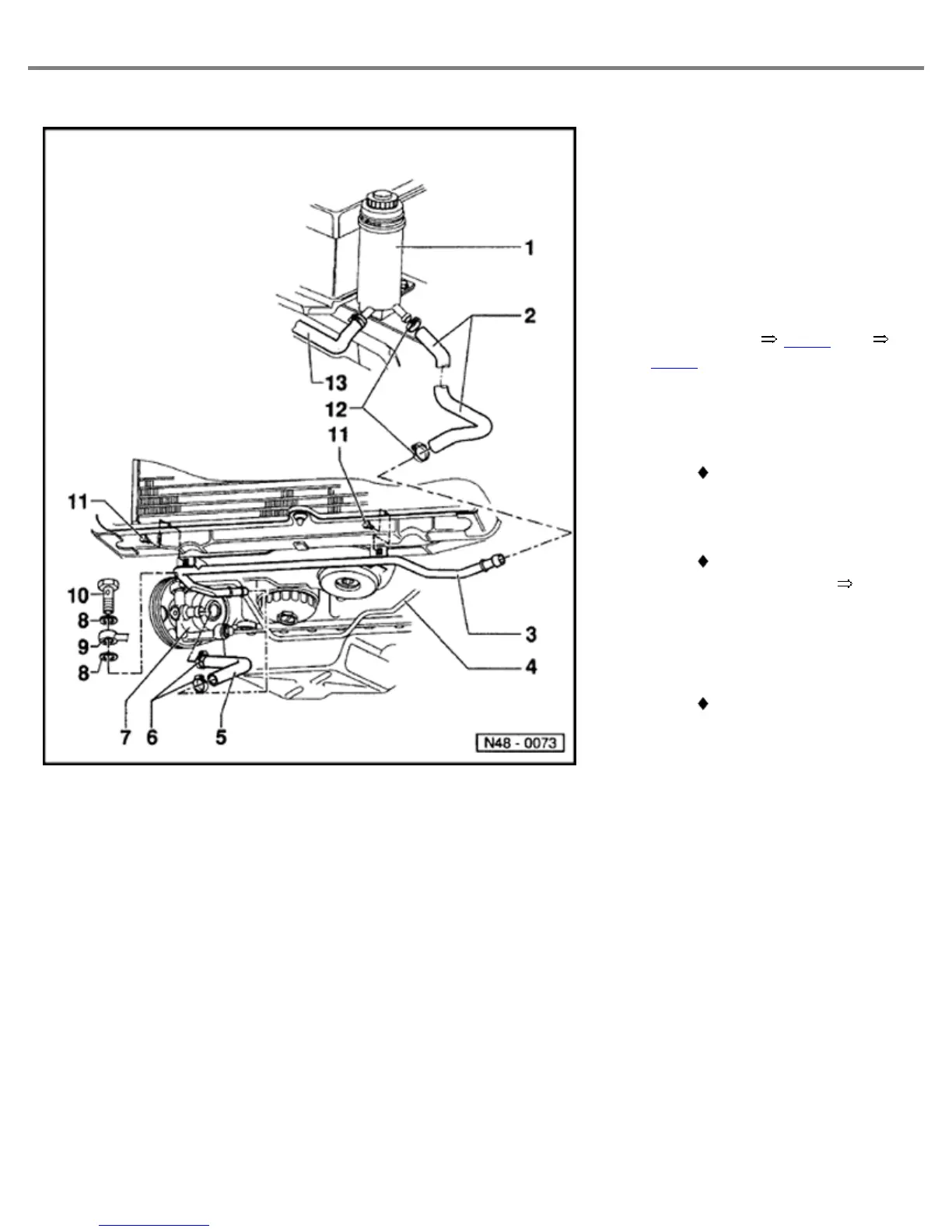

Assembly overview:
Pressure and cooling
lines (vehicles with VR6
engine)
Note:
Securing of pressure line
varies according to type of
transmission Fig. 1 and
Fig. 2
1 - Reservoir
2 - Suction hose
Reservoir - Cooling
line
3 - Cooling line
Secured to
crossmember item
8
4 - Pressure line
5 - Suction line
Cooling line -
Hydraulic pump
6 - Hose clamp, 3 Nm (27
in. Ib)
Page
94
of
99
Steering
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.48.1
