Volkswagen Passat 1996 User Manual

46-37
Parking brake lever
assembly overview

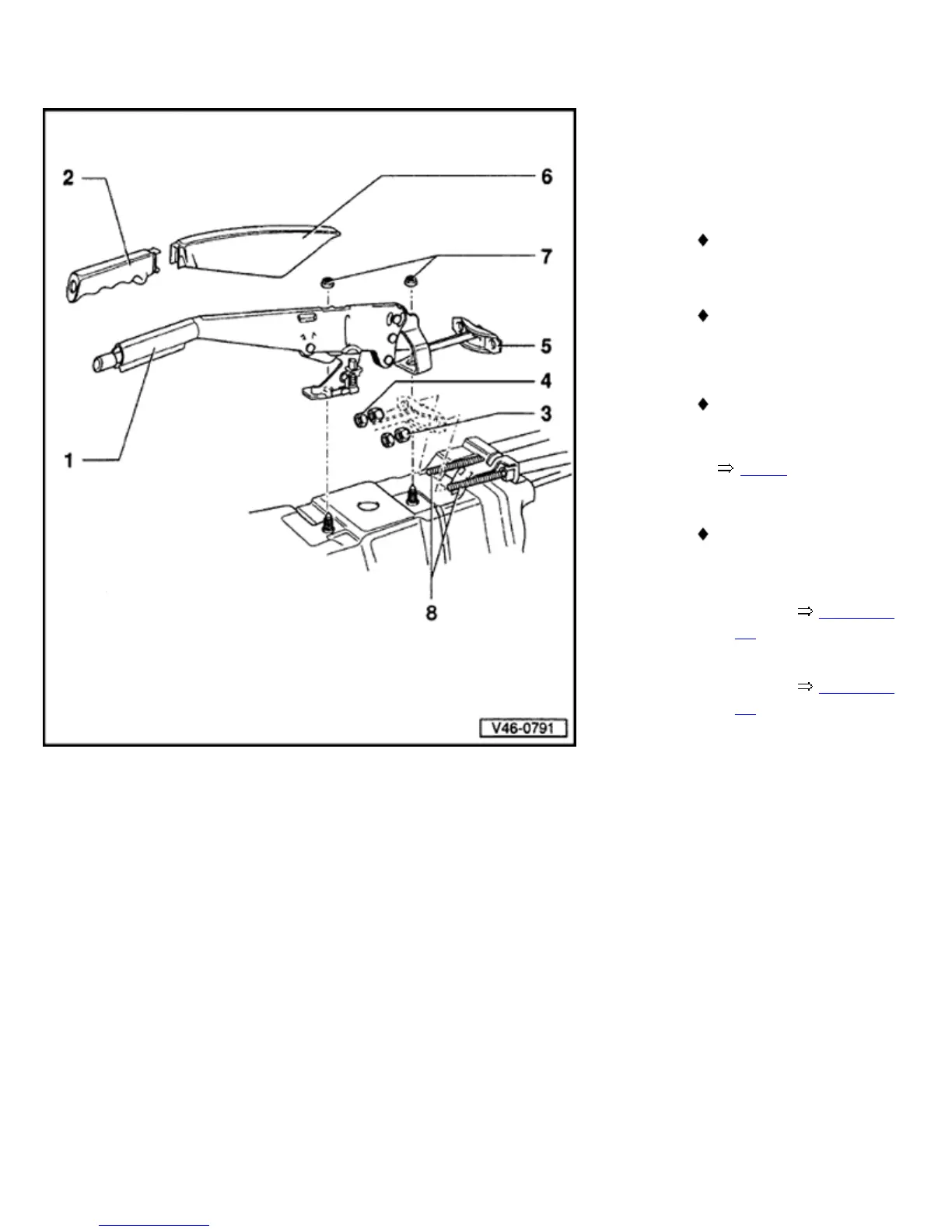

1 - Parking brake lever
Different versions for
rear drum and disc
brakes
Before removing
remove center console
2 - Hand grip
Pry trim up with a
small screwdriver then
pull forward to remove
Fig. 2
3 - Adjusting nut
Adjusting parking
brake:
- Vehicles with drum
brakes Page 46-
26
- Vehicles with disc
brakes Page 46-
36
Page
1
of
9
Parking brake lever assembly overview
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.6
