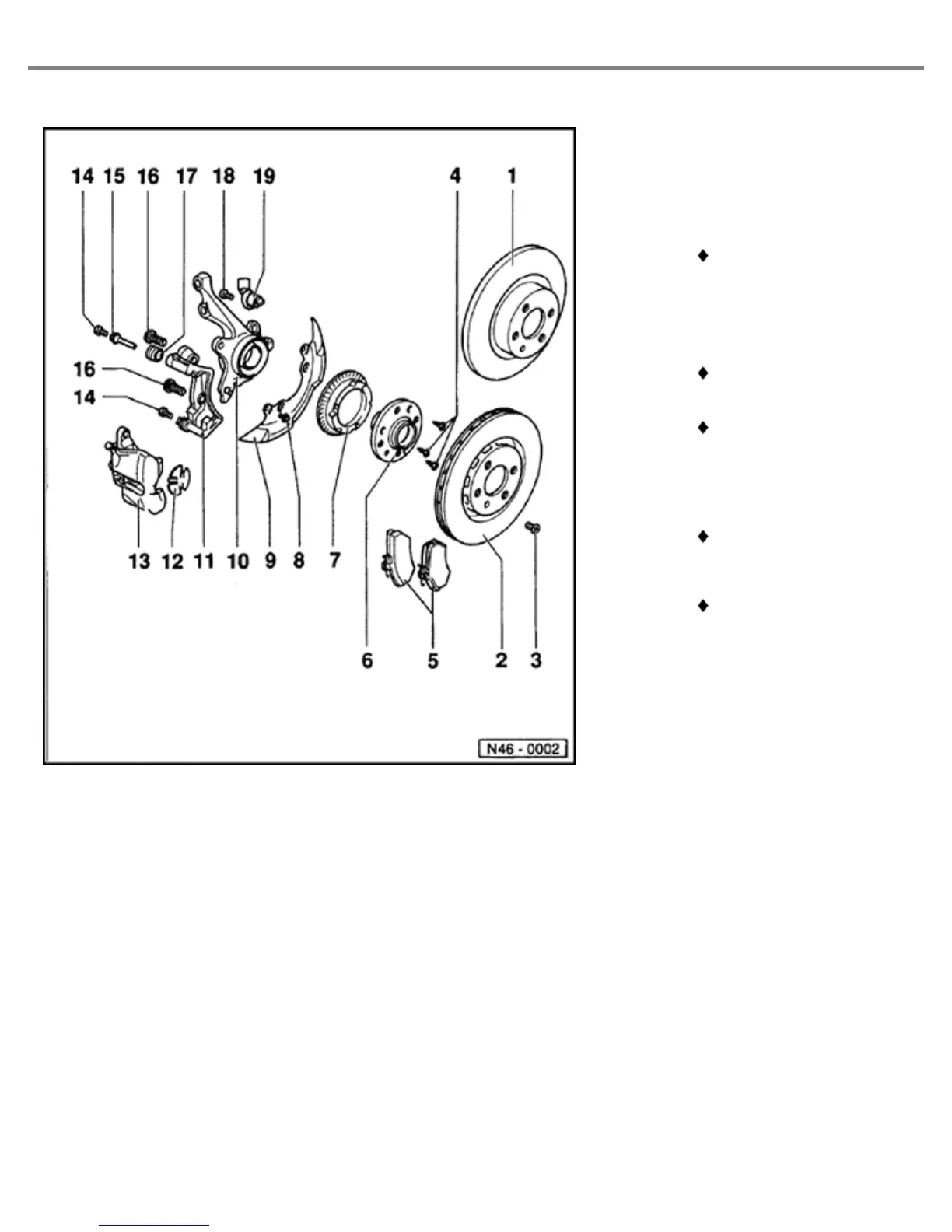

10 - Wheel bearing housing
11 - Brake carrier with
guide pins and
protective caps
Supplied as
replacement part
assembled with
sufficient amount of
grease on guide pins
If protective caps are
damaged use repair kit
Use grease packet
supplied to lubricate
guide pins
12 - Heat shield
Install in piston
13 - Brake caliper housing
Do not disconnect
brake hose when
changing brake pads
Page
4
of
7
Front brakes, servicing (Girling caliper)
