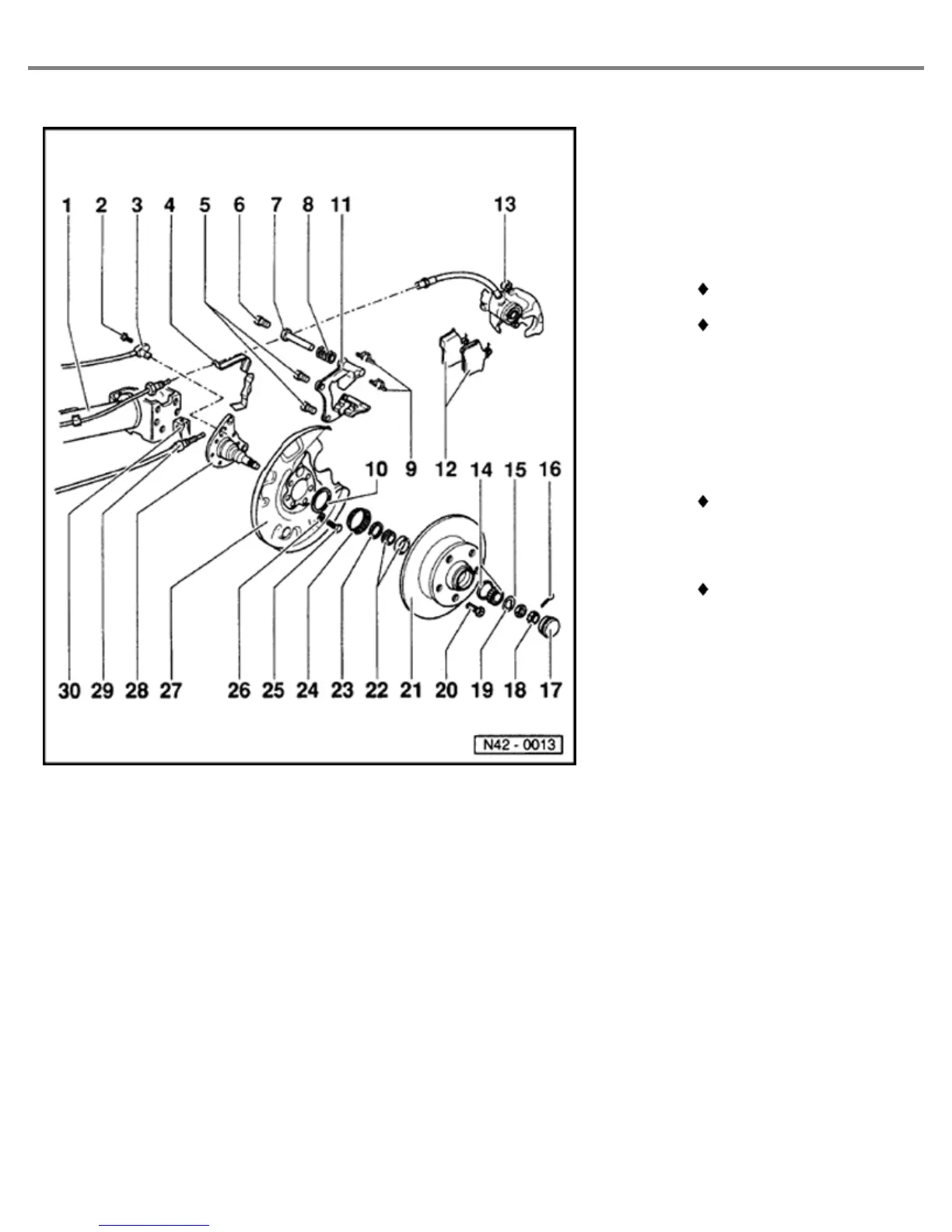

4 - Brake hose bracket
5 - Hex socket head bolt,
65 Nm (48 ft lb)
6 - Self-locking bolt, 35
Nm (26 ft lb)
Always replace
When loosening and
tightening, counter-
hold on guide pin
7 - Guide pin
8 - Protective cap
9 - Pad retaining springs
Always replace when
changing pads
10 - Backing plate ring
Distance between ring
collar and backing
plate: 9.5 mm
Page
2
of
10
Rear wheel brakes, servicing (disc brakes)
