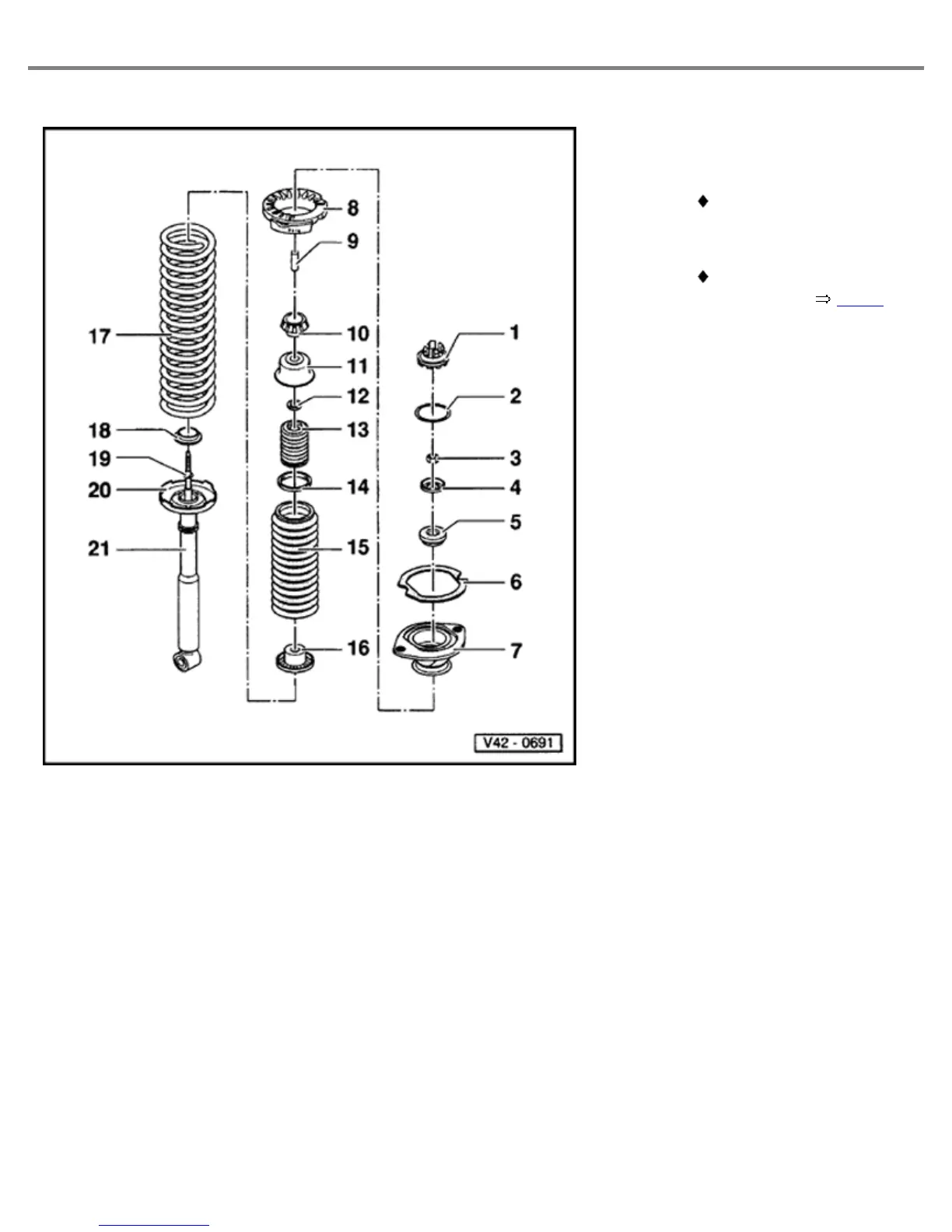

7 - Suspension strut
mounting
Welded nuts must be
located in the spring
seat recesses
Installation position to
spring seat Fig. 3
8 - Spring seat
9 - Spacer tube
10 - Lower rubber
mounting
11 - Stop buffer mounting
12 - Washer
13 - Stop buffer
14 - Ring (Aluminium)
15 - Boot
16 - Protective cap
Page
2
of
6
Suspension strut, disassembling and assembling (four wheel drive vehicles)
