Volkswagen Passat 1996 User Manual

45-20
Repair Manual, Brake
System On Board Diagnostic
(OBD), Repair group 01
12 - Cap
13 -
Hex socket head screw
for brake fluid
reservoir
14 - Series resistor
Only on vehicles with
ABS/EDL
Checking
15 - Self-
locking hex nut, 25
Nm (18 ft lb)
16 - Tandem brake master
cylinder
17 - Protective plate
18 - Hex bolt for protective
plate
Page
3
of
10

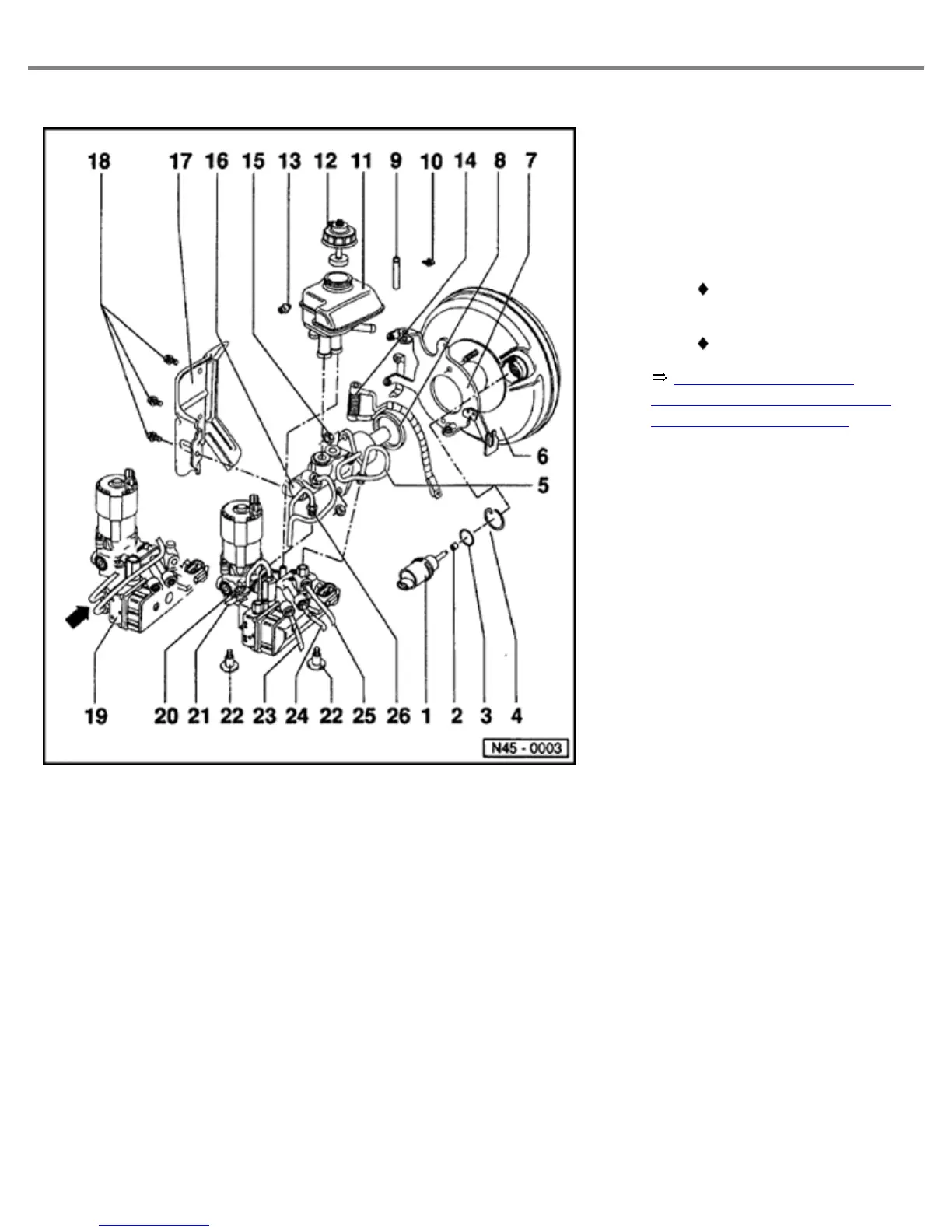

Assembly overview
-
hydraulic unit, brake servo/brake master cylinder
12/7/2004
