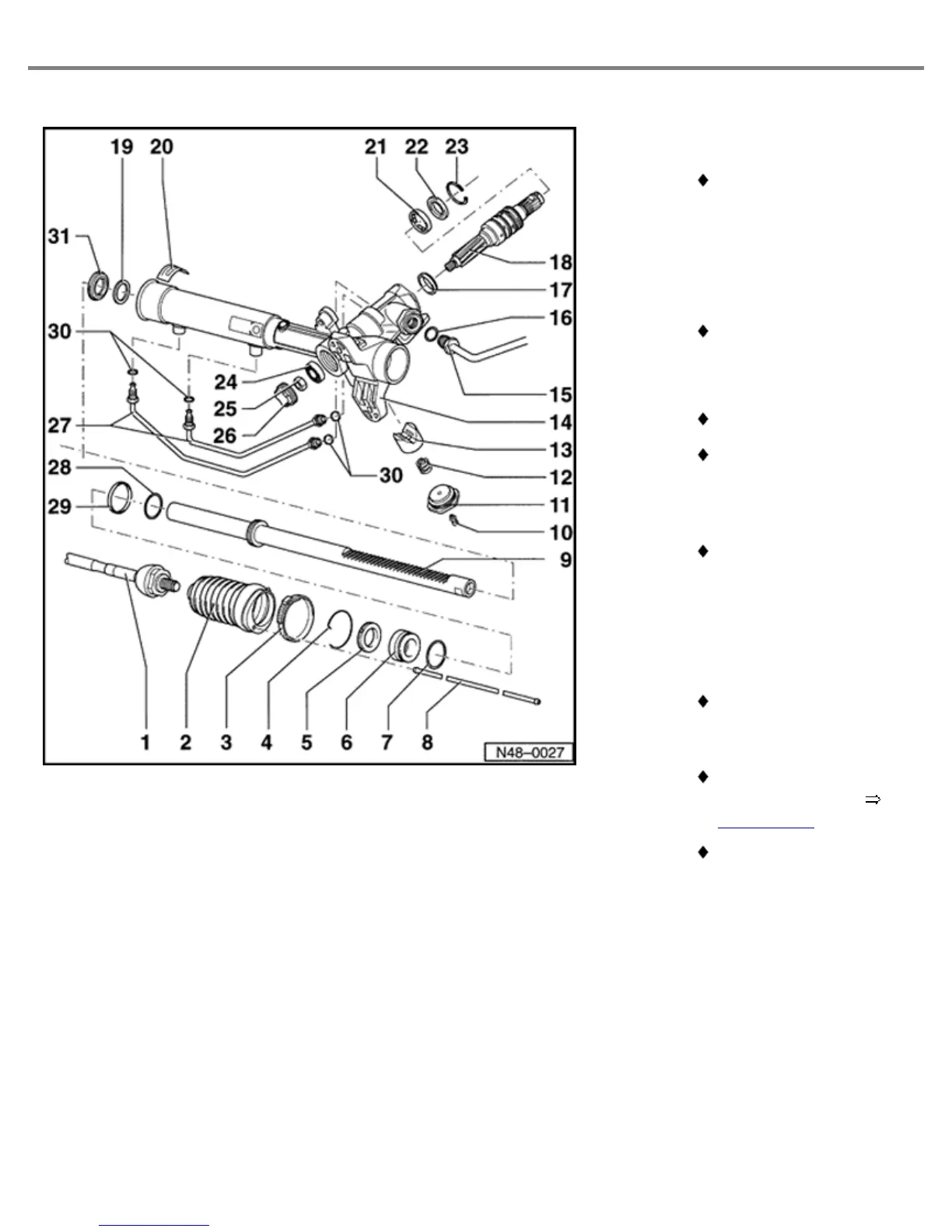

7 - O-ring
Is assembled on
toothed rod guide
(item -6-) contained in
the repair kit
8 - Pressure
compensating tube
Check for damage
(dents and kinks)
9 - Toothed rod
Check for scoring
After removing
lubricate immediately
with hydraulic oil
(corrosion protection)
Supplied as a
replacement part, for
assignment see
replacement parts
fiche
10 - Plug
Is only installed if the
toothed rod was
replaced
To install, drill hole in
the adjusting bolt
Page 48-51
Supplied in repair kit
Page
27
