The rubber mounting -A- is equipped with an
eccentric bushing which can change the position of
the control arm.
This rubber mounting may only be installed in the
control arm inner mounting. The camber and/or toe
can be changed according to installation position.
Note:
With this mounting the camber or toe can be altered
up to 18'.

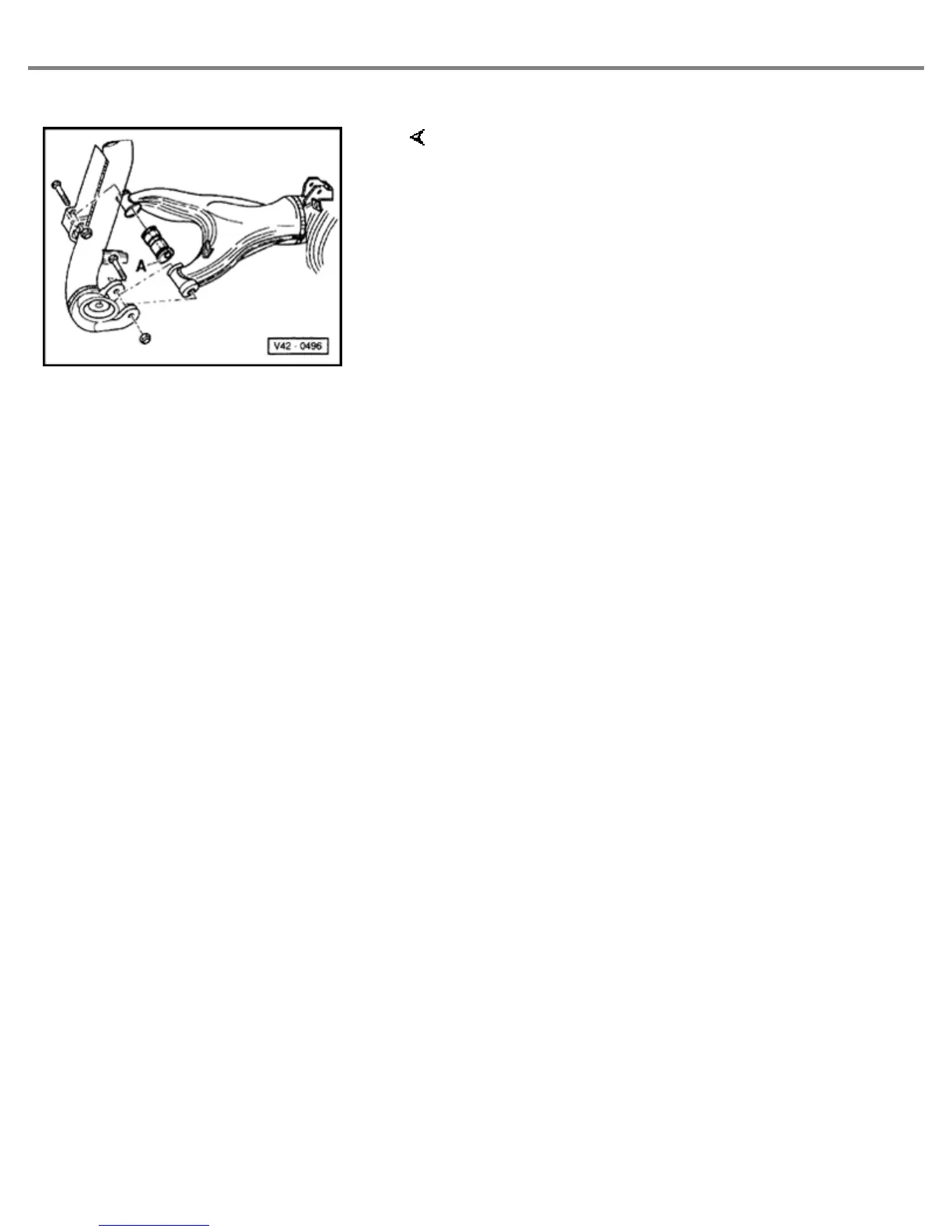

Fig. 8 Rubber mounting to correct camber/toe
Installation position
Alteration
Eccentric upward Camber alteration negative
Eccentric downward Camber alteration pos.
Eccentric forward Toe alteration positive
Eccentric rearward Toe alteration negative
Rear axle, servicing (four wheel drive vehicles)
