Volkswagen Passat 1996 User Manual

40-15
Repair Manual, Suspension,
Wheels, Brakes, Steering,
Repair Group 00

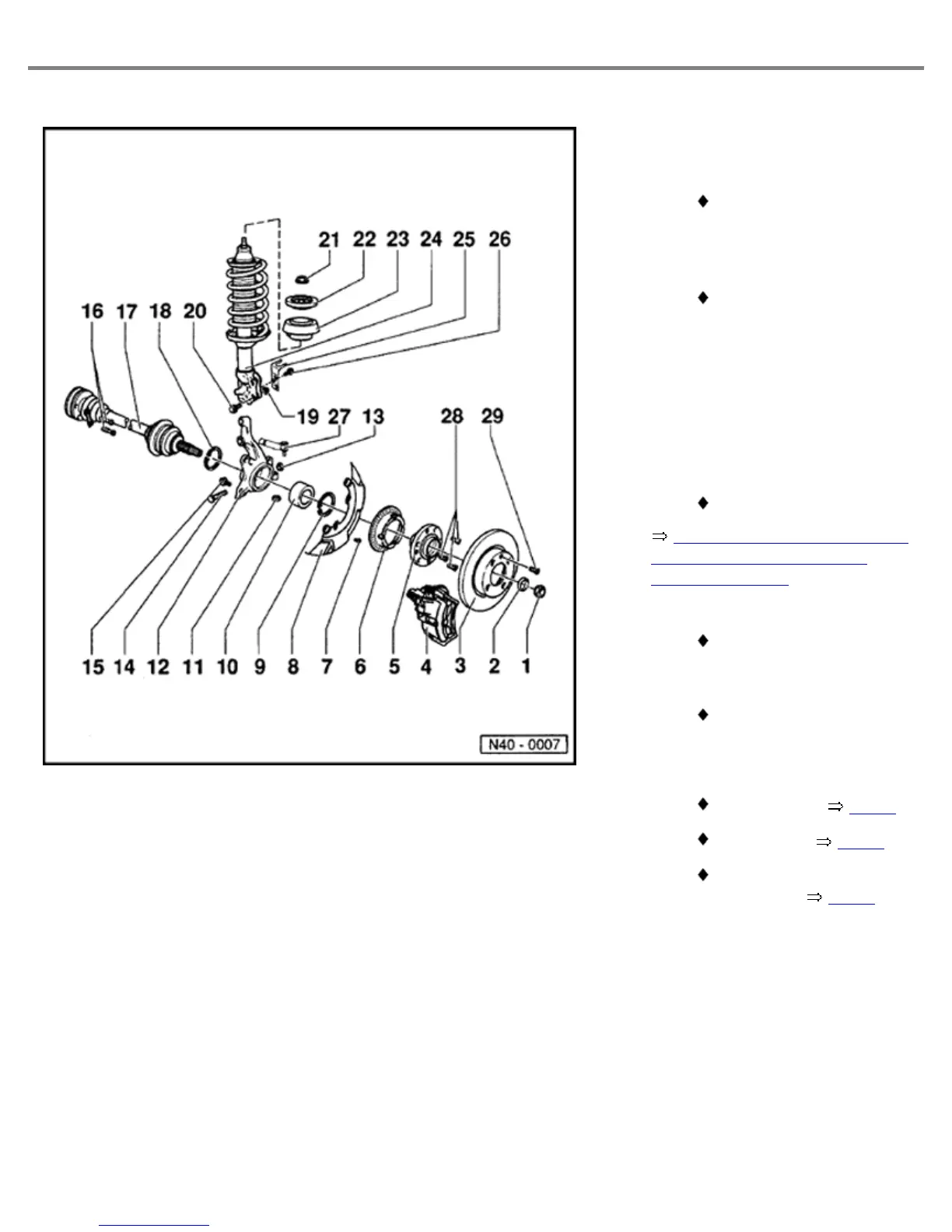

1 - Self-locking nut, 265
Nm (195 ft lb)
Only loosen and
tighten with the vehicle
standing on its wheels
(danger of accident)
Any paint residue
and/or corrosion on
the thread of the outer
joint must be removed
before the nut is
installed
2 - Washer
3 - Brake disc
Application
4 - Brake caliper
Do not loosen brake
hose when working on
front suspension
Hang up with wire or
similar
5 - Hub
Pressing out Fig. 3
Pressing in Fig. 8
Pulling off bearing
inner race Fig. 5
Page
15
of
82
Front Wheel Suspension, Shafts and Axle
12/7/2004
