Assembly overview
- hydraulic unit,
brake servo/brake
master cylinder
Note:
Repair Manual, Brake
System On Board Diagnostic
(OBD), Repair group 01
Pump and valve block must
not be separated from one
another.

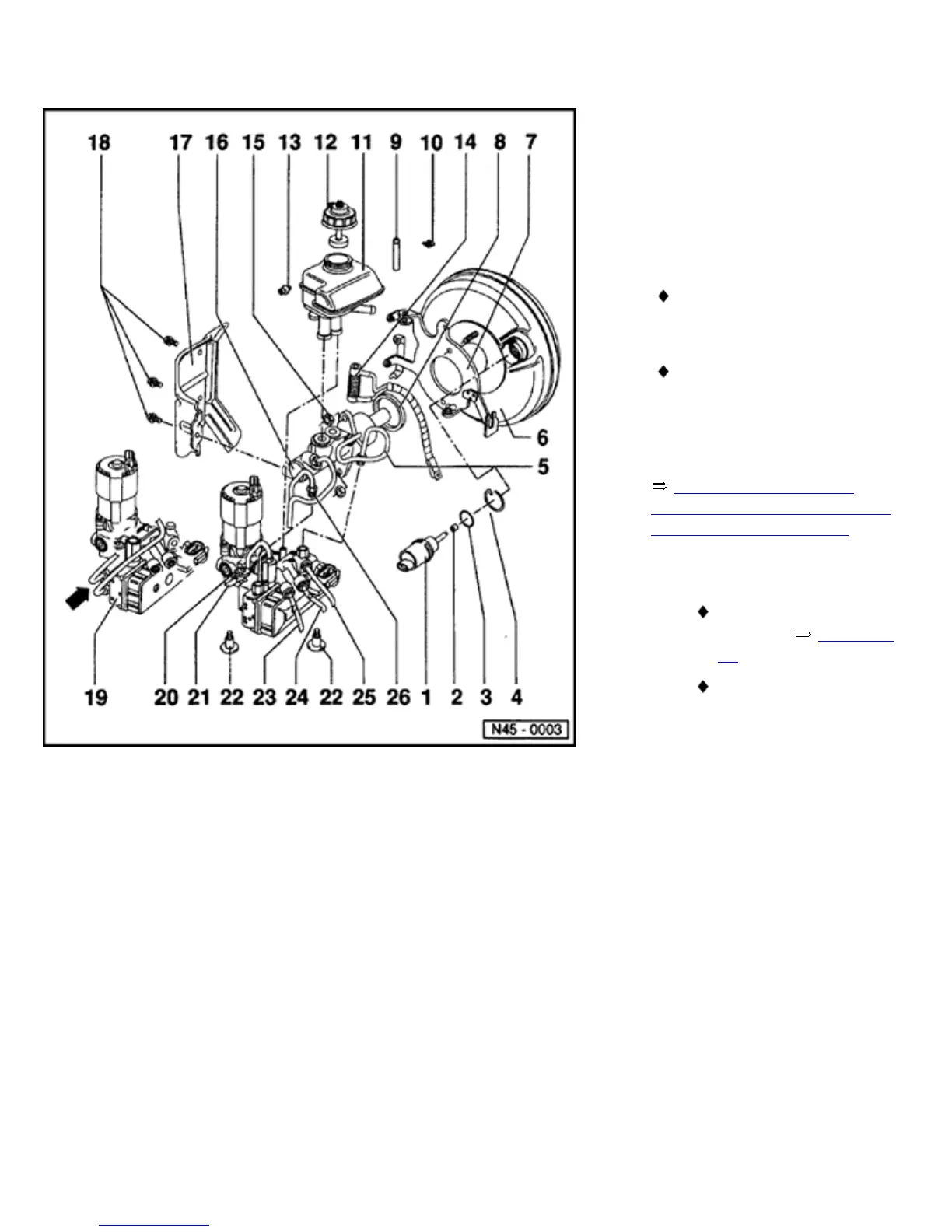

Illustration shows an
exploded view of the
ABS/EDL unit. Servicing of
ABS unit is identical.
Distinguishing features
1 - Brake Pedal Position
Sensor
Removing and
installing Page 45-
25 .
Checking
Page
1
of
10
Assembly overview
-
hydraulic unit, brake servo/brake master cylinder
