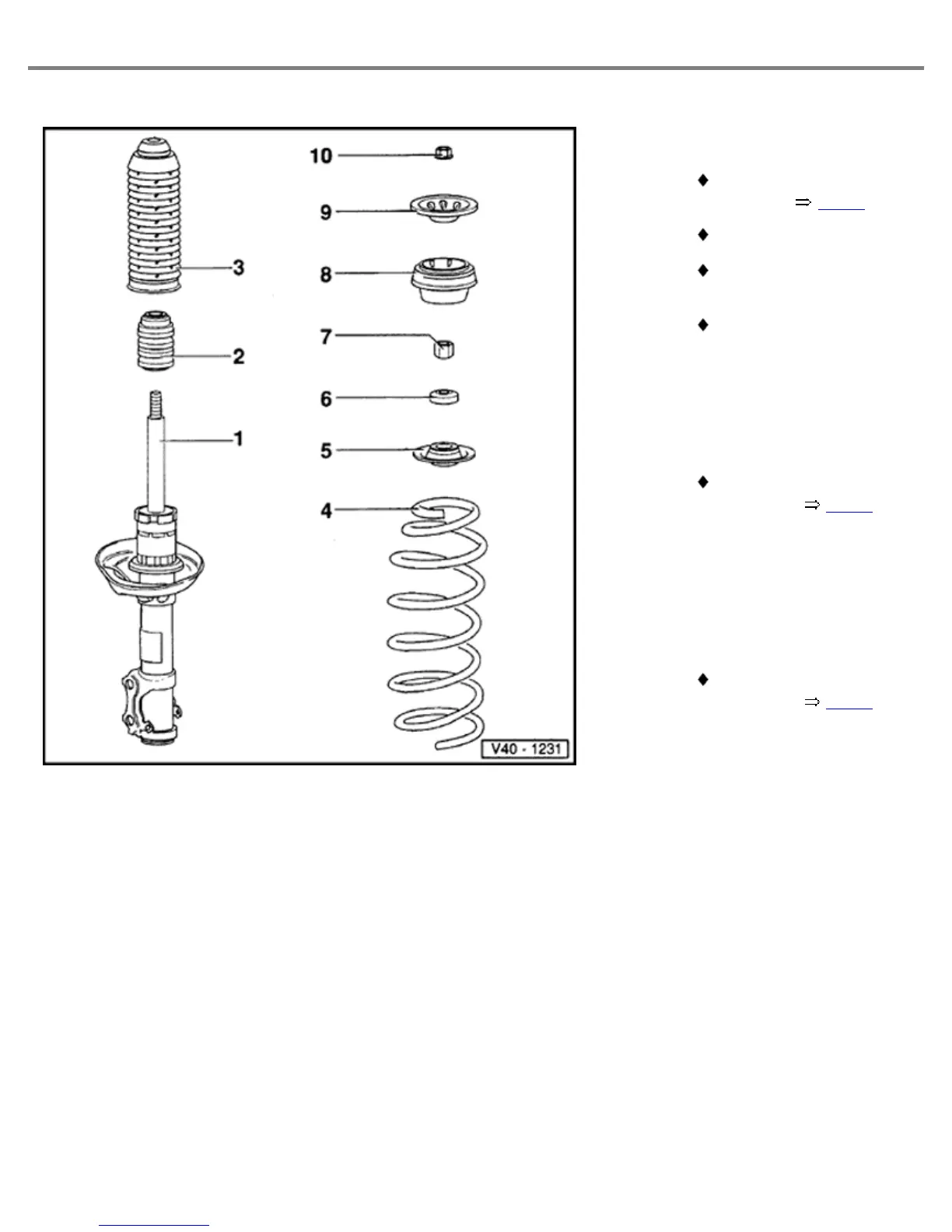

4 - Coil spring
Removing and
installing Fig. 2
Observe color coding
Outer surface of spring
must not be damaged
Is slightly curved
5 - Spring plate
6 - Axial bearing
7 - Hex nut, 60 Nm (44 ft
lb)
Loosening and
tightening Fig. 2
8 - Suspension strut
mounting
9 - Stop
10 - Self-
locking hex nut, 60
Nm (44 ft lb)
Loosening and
tightening Fig. 1
Page
24
of
82
Front Wheel Suspension, Shafts and Axle
12/7/2004
