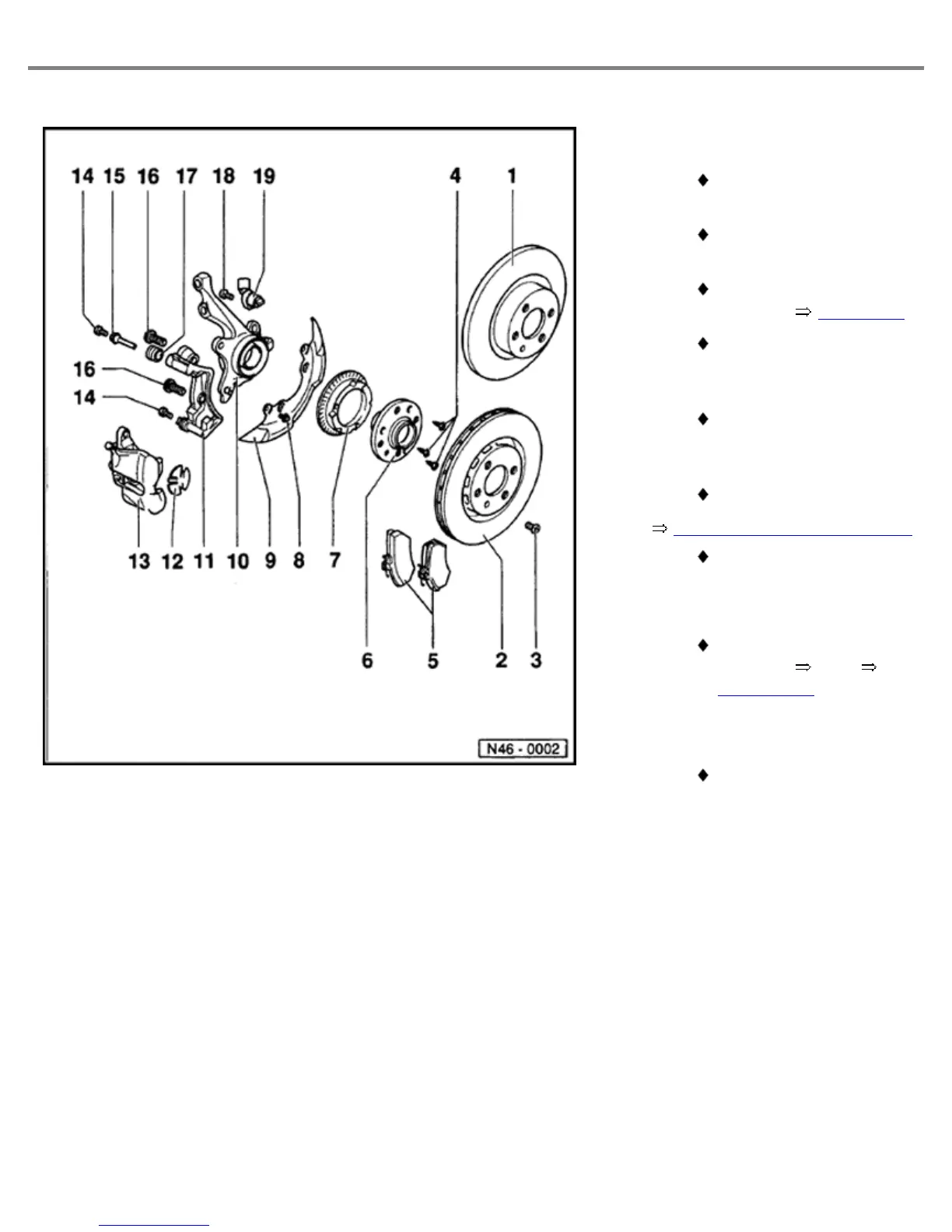

5 - Brake pad
With brake pad wear
indicator
Always replace on
both sides
Removing and
installing Page 46-6
Pad thickness: non-
ventilated brake disc,
14 mm
Pad thickness:
ventilated brake disc,
11 mm
Checking thickness
Wear limit: 7 mm
(including backplate)
6 - Hub
Removing and
installing from
Page 40-14
7 - Wheel speed sensor
rotor
Only on vehicles with
ABS
8 - Hex bolt, 10 Nm (7 ft lb)
9 - Splash plate
Page
3
of
7
Front brakes, servicing (Girling caliper)
12/7/2004
