40-5
Repair Manual, Engine
Mechanical, Repair Group 10
12 - Connecting link
mounting
Conical side toward
control arm
13 - Washer
Collar faces away from
mounting
14 - Self-
locking hex nut, 25
Nm (18 ft lb)

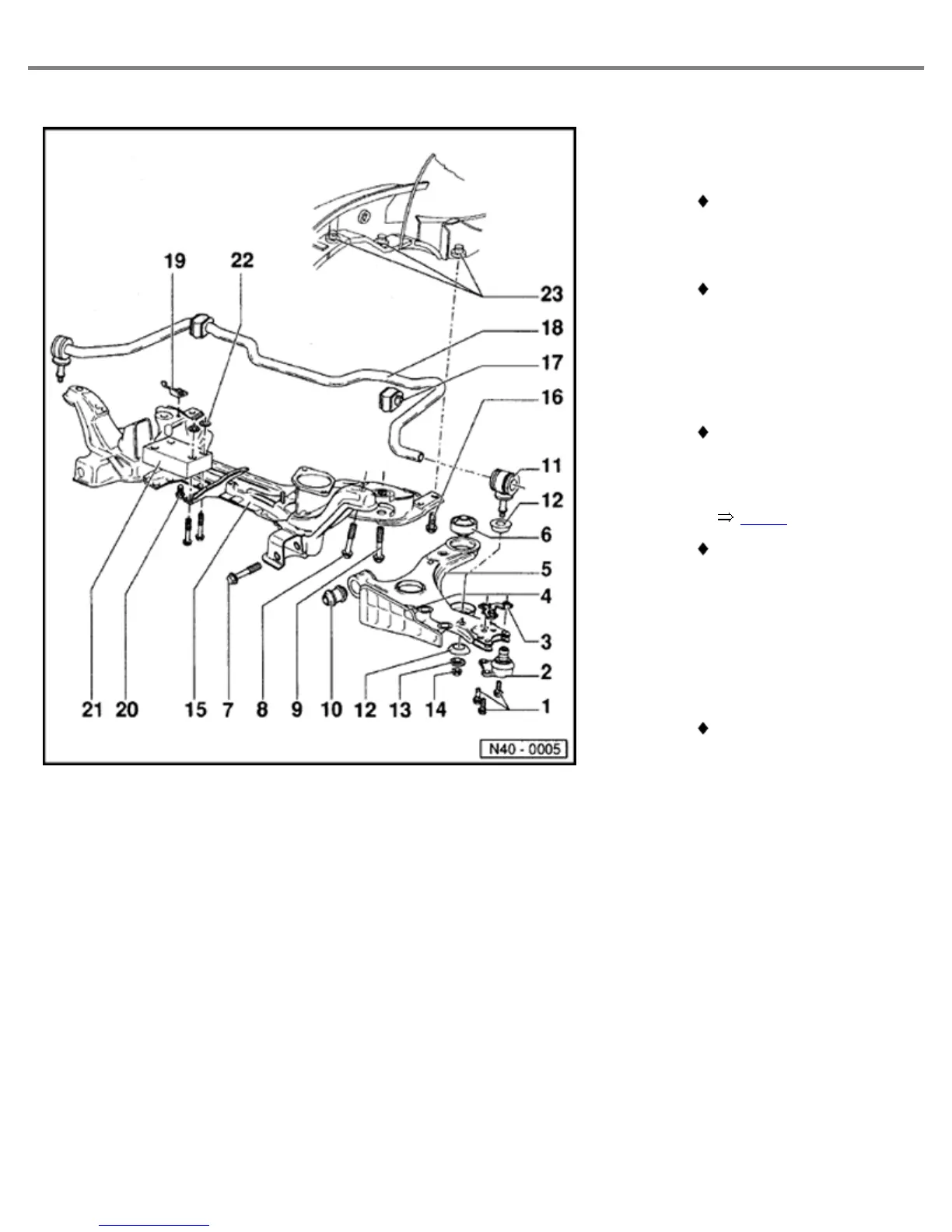

15 - Sub-frame
Removing and
installing with
assemblies installed:
supporting assemblies
Fig. 5
Remove sub-frame
from below with VAG
1383 (with control arm
but without steering
gear). After installing
check position of
steering wheel and
align front end.
Aligning engine-
transmission assembly
Page
5
of
82
Front Wheel Suspension, Shafts and Axle
