40-3

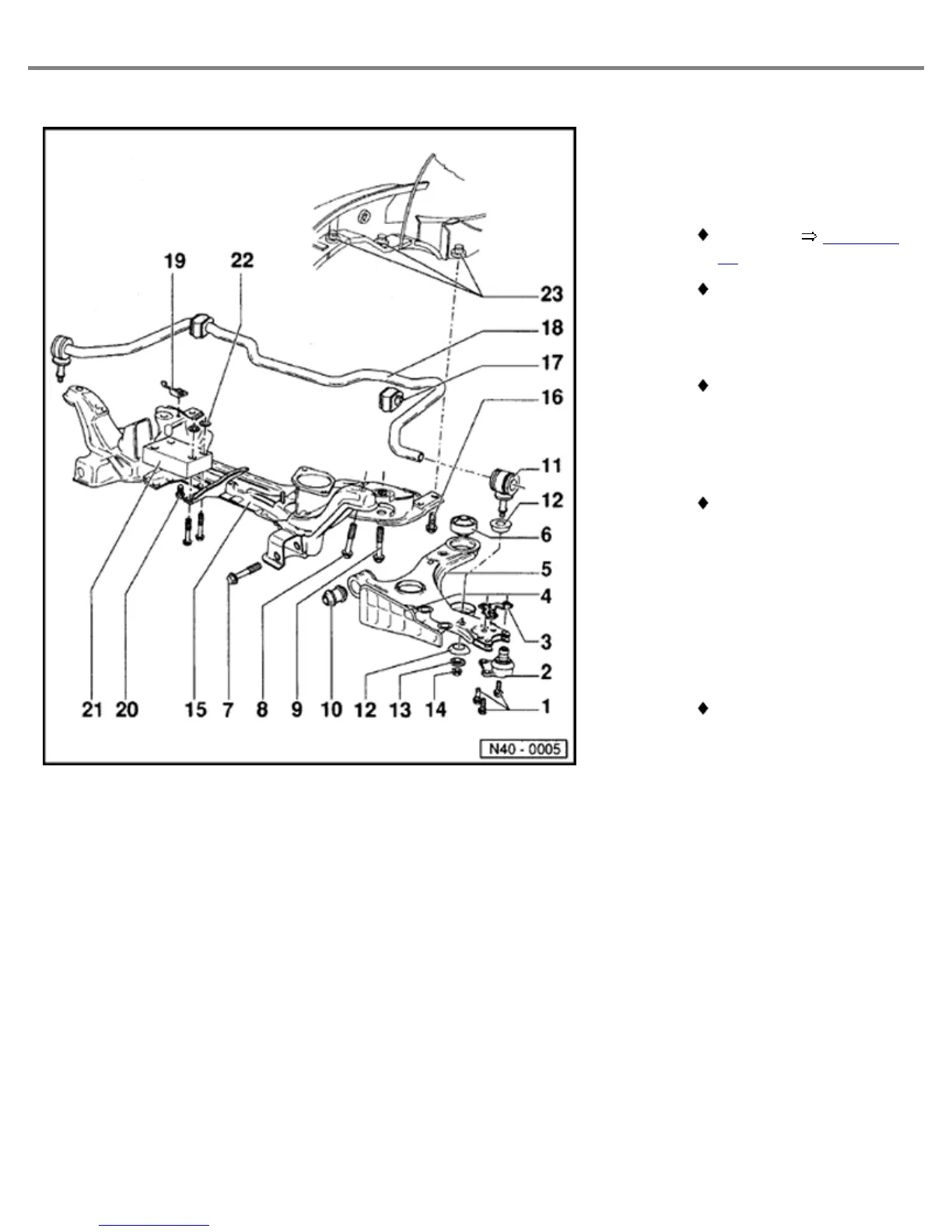

1 - Hex bolt, 35 Nm (26 ft
lb)
2 - Ball joint
Checking Page 40-
10
Check rubber boot for
damage and if
necessary, replace ball
joint
Mark installation
position. If replaced
set to center of
elongated hole and
check toe
Elongated holes are
not for camber
adjustment. Failure to
observe this instruction
may result in damage
to drive shafts!
3 - Captive lock nuts
4 - Air deflector plate
Secured to control arm
by clip
5 - Control arm
Page
3
of
82
Front Wheel Suspension, Shafts and Axle
12/7/2004
