Volkswagen Passat 1996 User Manual

48-44
Inner sealing ring for toothed rod,
installing

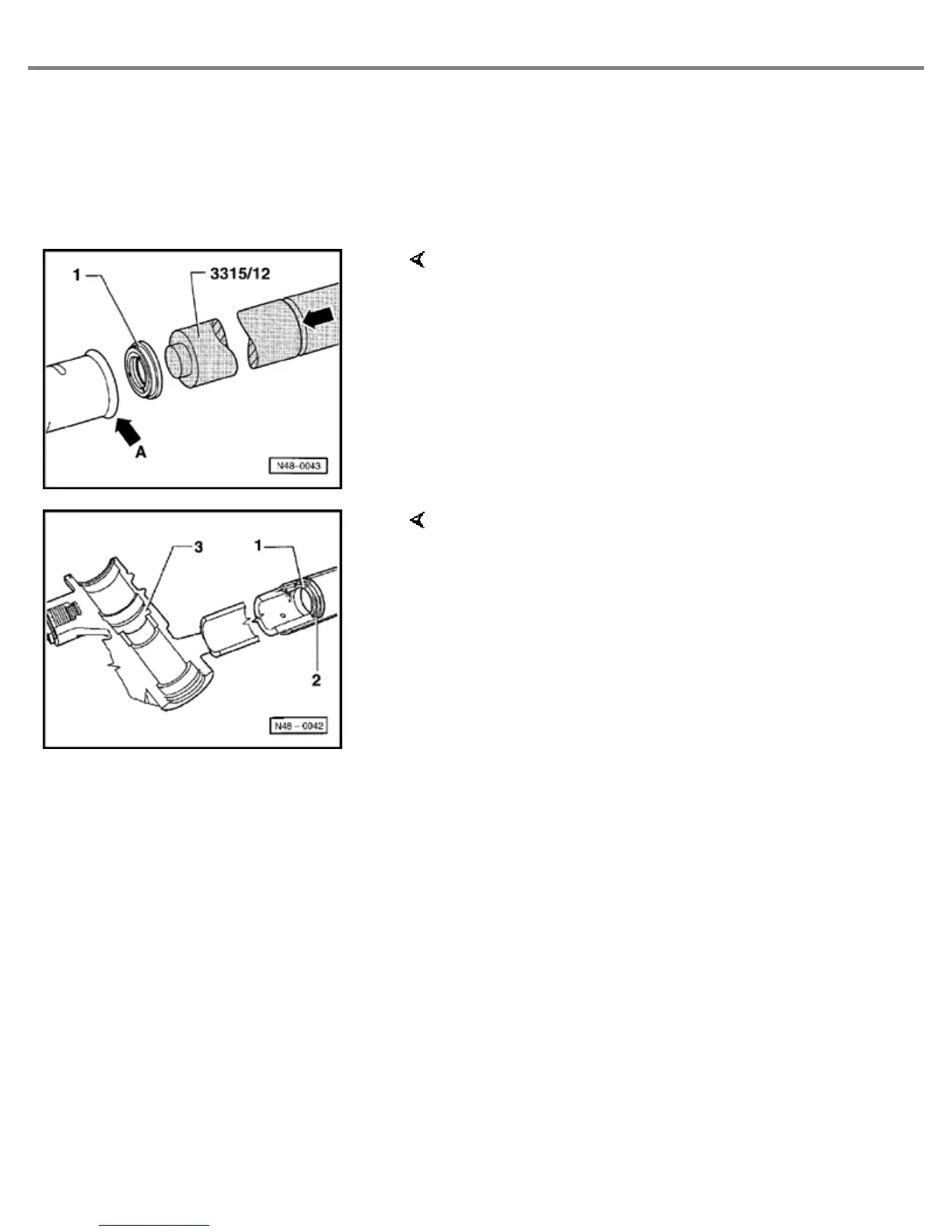

- Place sealing ring on tool
- Ensure correct installation position of sealing ring
for toothed rod
- Drive sealing ring -1- into the cylinder pipe far
enough so that the groove (arrow) on the tool
matches the edge (arrow A) of the housing
1 - Sealing ring
A - Edge of housing
For better view, illustration shows housing in cross
section
1 - Support ring
2 - Sealing ring
3 - Valve body housing
Page
44
of
99
Steering
12/7/2004
