45-19
2 - Spacer cap
Various versions
Page 45-25
3 - Sealing ring
Always replace
4 - Circlip
Always replace
5 - Brake line
Brake master
cylinder/primary piston
circuit to hydraulic unit
6 - Brake servo
7 - Carrier plate
8 - Sealing ring
9 - Pin
10 - Securing clip
11 - Brake fluid reservoir
Page
2
of
10

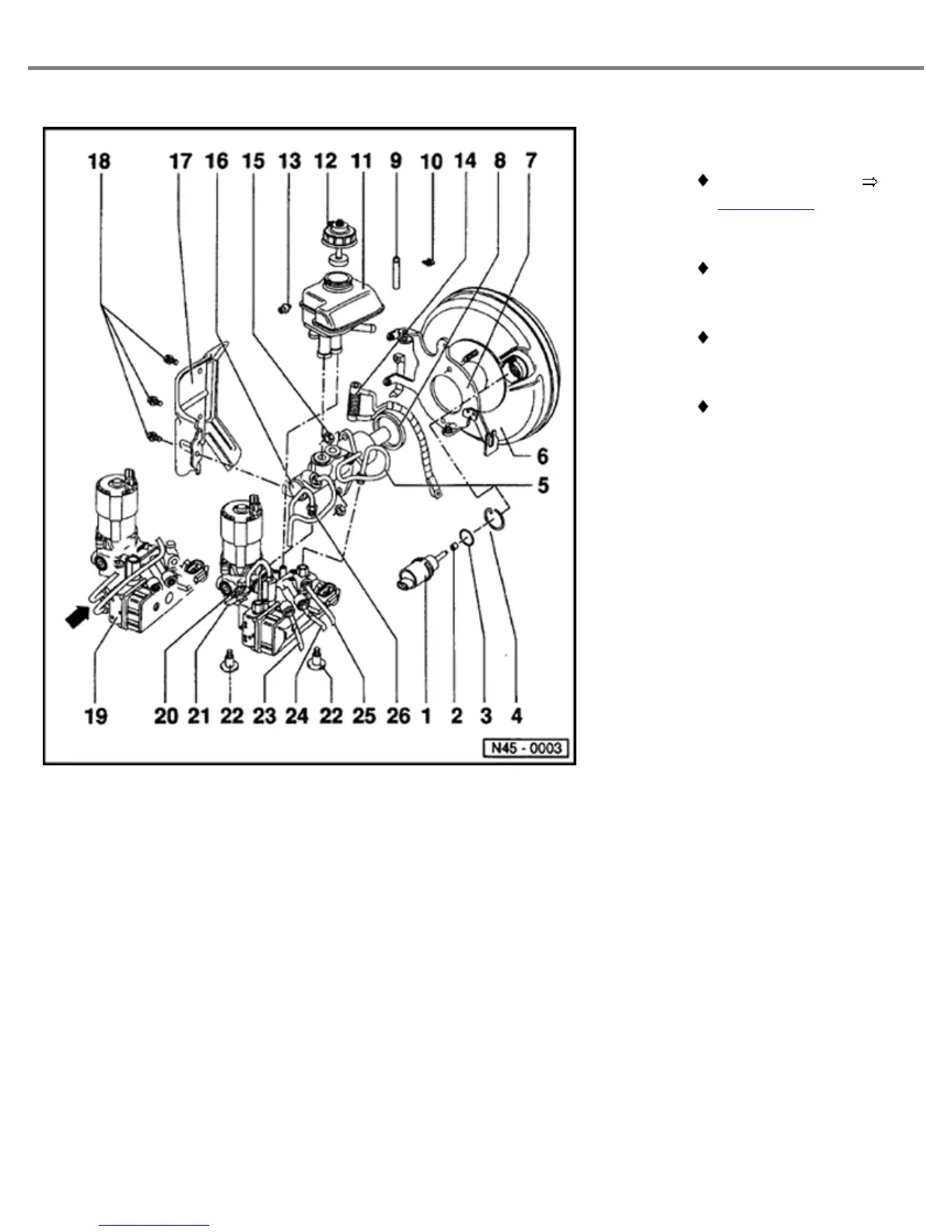

Assembly overview
-
hydraulic unit, brake servo/brake master cylinder
