Cuff seating tolerance "a":
1
/
2
to 1
1
/
2
grooves visible
at end of cuff.
Note:
This installation position tolerance is also valid for the
left drive shaft transmission end boot (polyester
elastomer version).

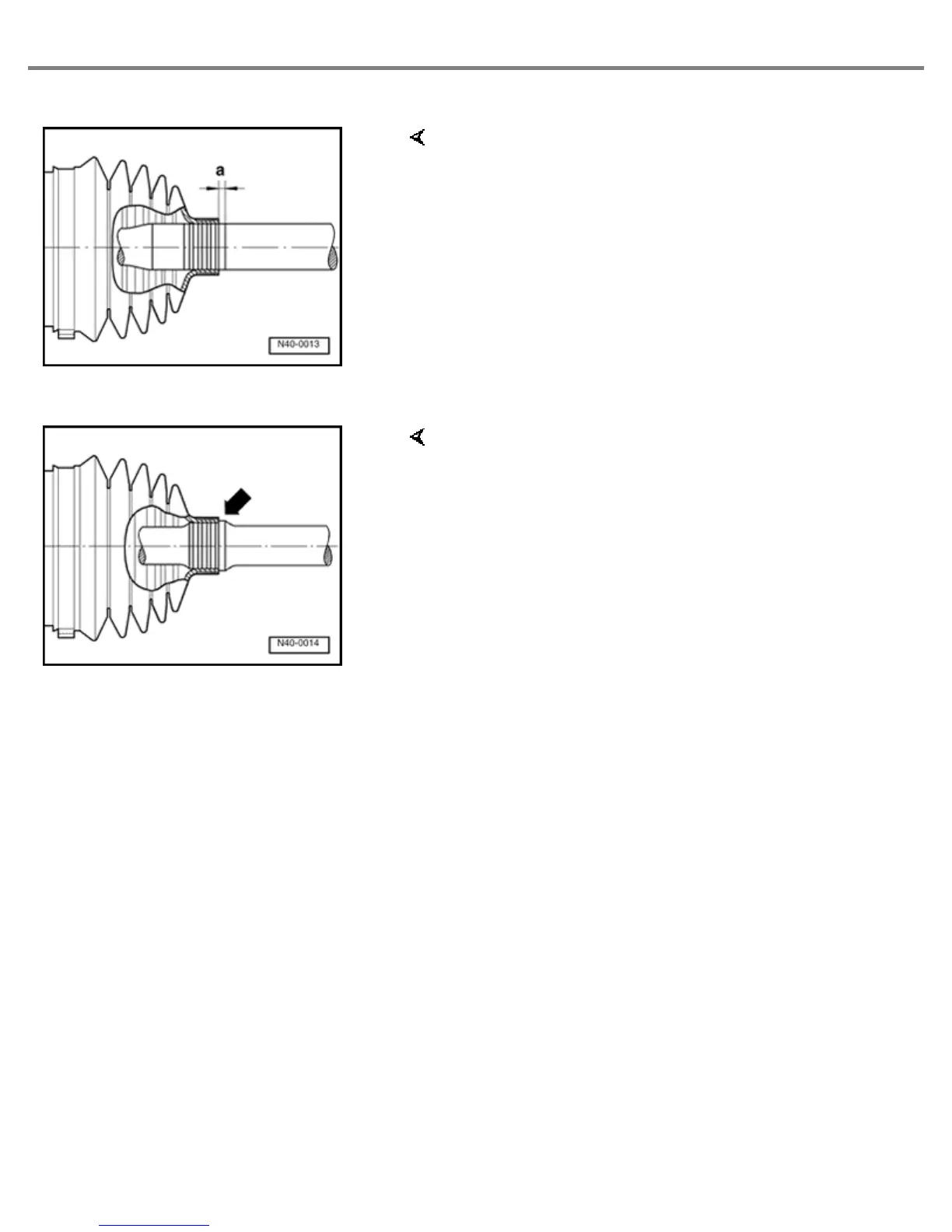

Fig. 10 Installation position of left drive shaft
wheel end joint boot, shaft diameter 27
mm
Cuff installation position: Cuff butts against shaft
shoulder (arrow).
Fig. 11 Installation position of left drive shaft,
wheel end, shaft diameter 22 mm
Page
58
of
82
Front Wheel Suspension, Shafts and Axle
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1
