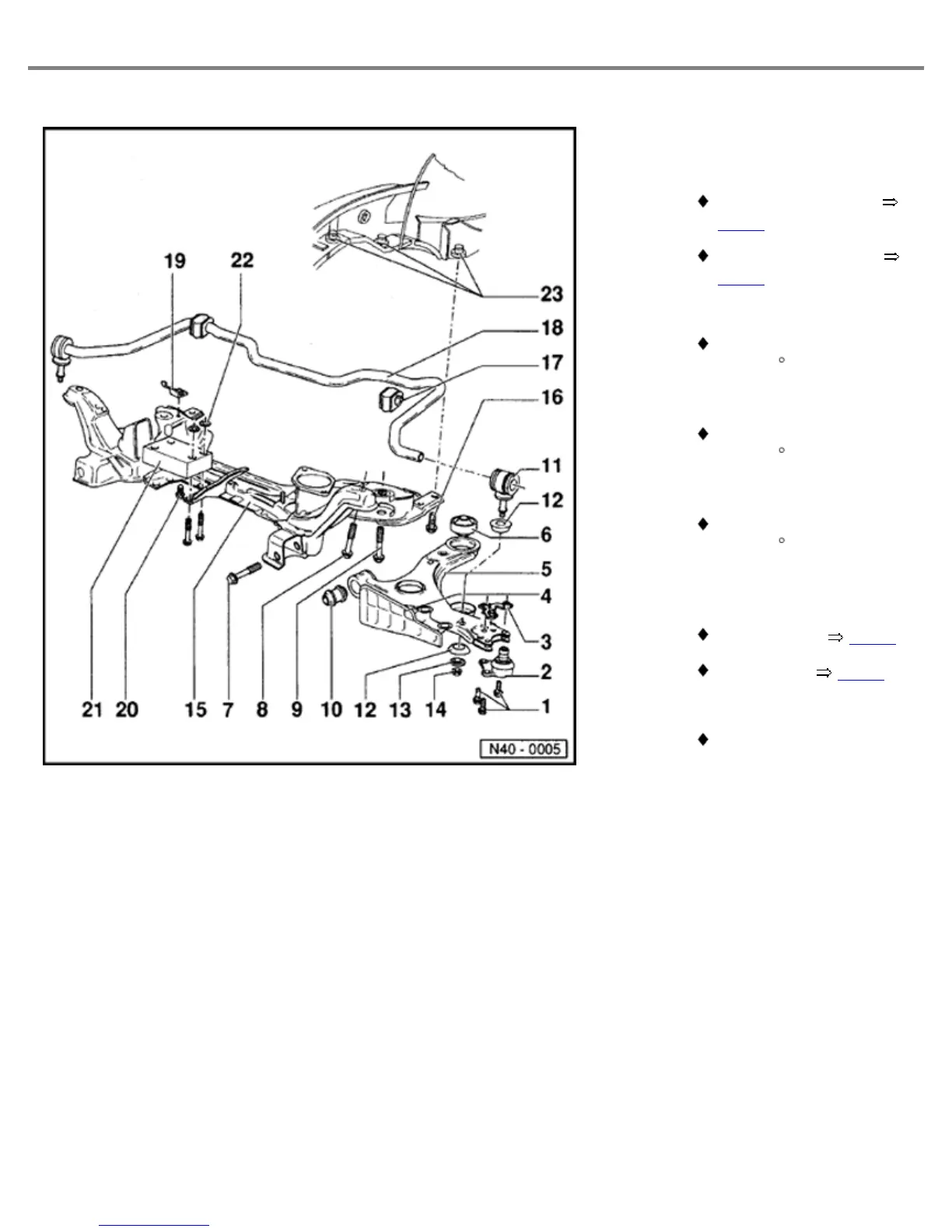

40-4
6 - Control arm rear
mounting
Installation position
Fig. 3
Pressing out and in
Fig. 4
7 - Hex bolt M 12 x 1.5 x 82
50 Nm (37 ft lb) and
turn 90 further
8 - Hex bolt M 12 x 1.5 x 65
70 Nm (52 ft lb) and
turn 90further
9 - Hex bolt M 12 x 1.5 x 78
70 Nm (52 ft lb) and
turn 90further
10 - Control arm front
mounting
Pressing out Fig. 1
Pressing in Fig. 2
11 - Connecting link
With rubber mounting
