46-21

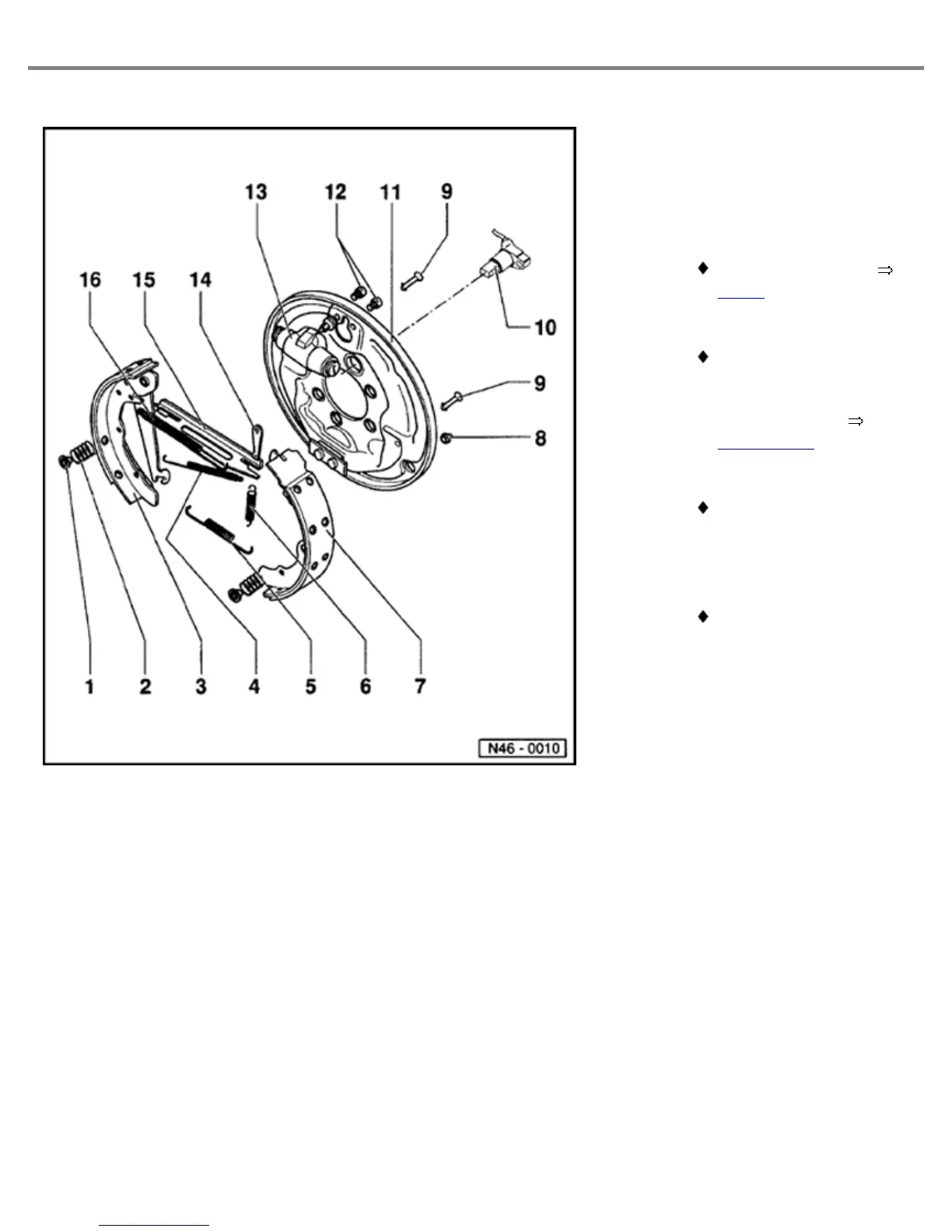

11 - Backing plate
12 - Hex socket head bolt,
10 Nm (7 ft)
13 - Wheel cylinder
Checking for leaks
Fig. 1
14 - Wedge
To remove and install
the brake drum, push
upwards through a
wheel bolt hole
Page 46-18
15 - Push rod
Lubricate contact
points with G 000 650
paste
16 - Locating spring
Unhook with pliers
Page
3
of
8
Rear wheel brakes, servicing
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.4
