40-55
Note:
Chamfer on inner diameter of ball hub (splines) must
face the contact shoulder on the drive shaft.

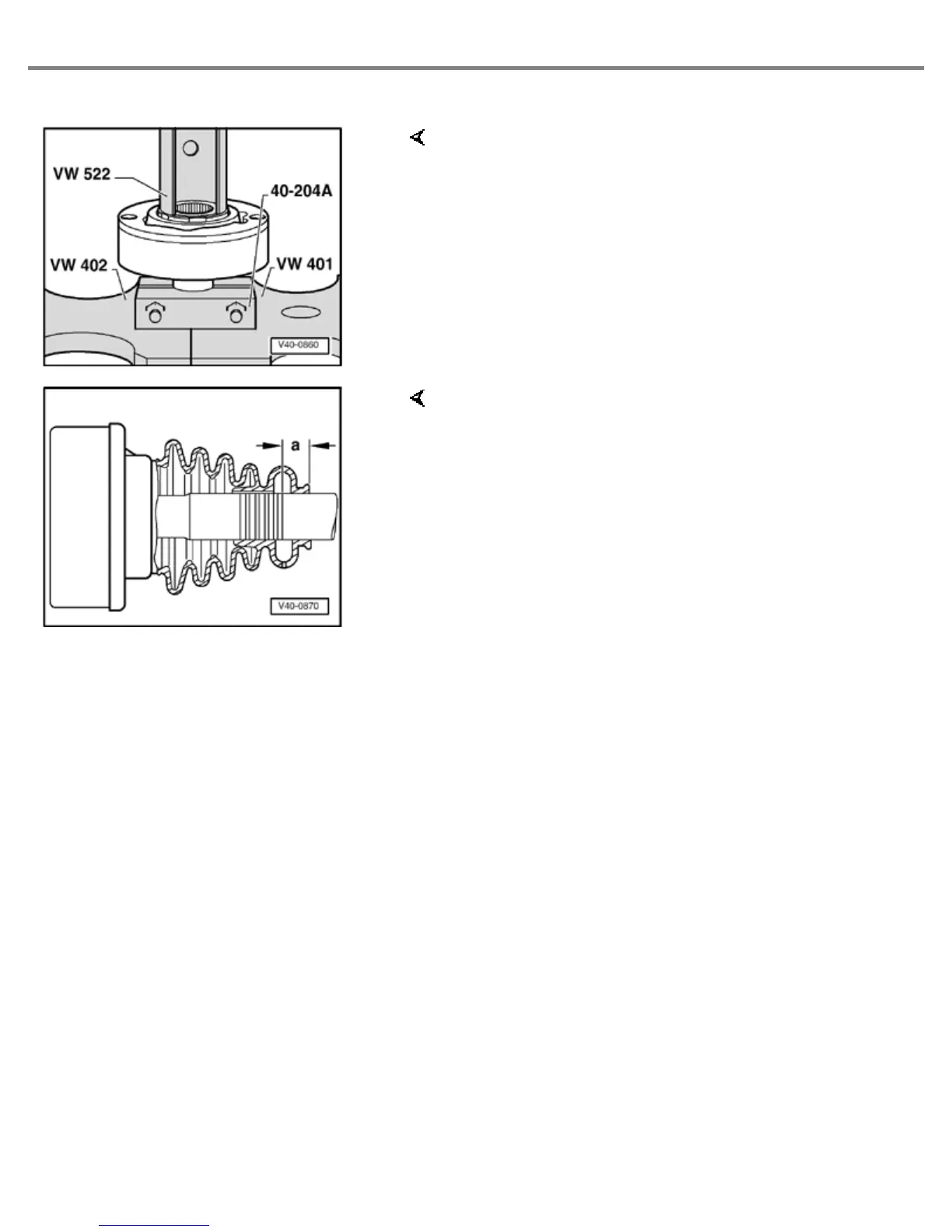

Fig. 4 Inner constant velocity joint, pressing
on
- Press on joint up to stop.
- Install circlip.
Dimension "a" = 17 mm
Note:
Before assembling boot on drive shaft mark position,
dimension "a", with for example paint or adhesive
tape. Under no circumstances should paint surface
be damaged with a sharp tool.
Fig. 5 Installation position of left drive shaft
transmission end joint boot - rubber
version
Page
55
of
82
Front Wheel Suspension, Shafts and Axle
12/7/2004
