Brake pedal/brake servo,
removing and installing
CAUTION!
The brake pedal travel must
not be restricted by
additional floor coverings.
Note:
Grease all mountings before
installing with G 000 602
grease.

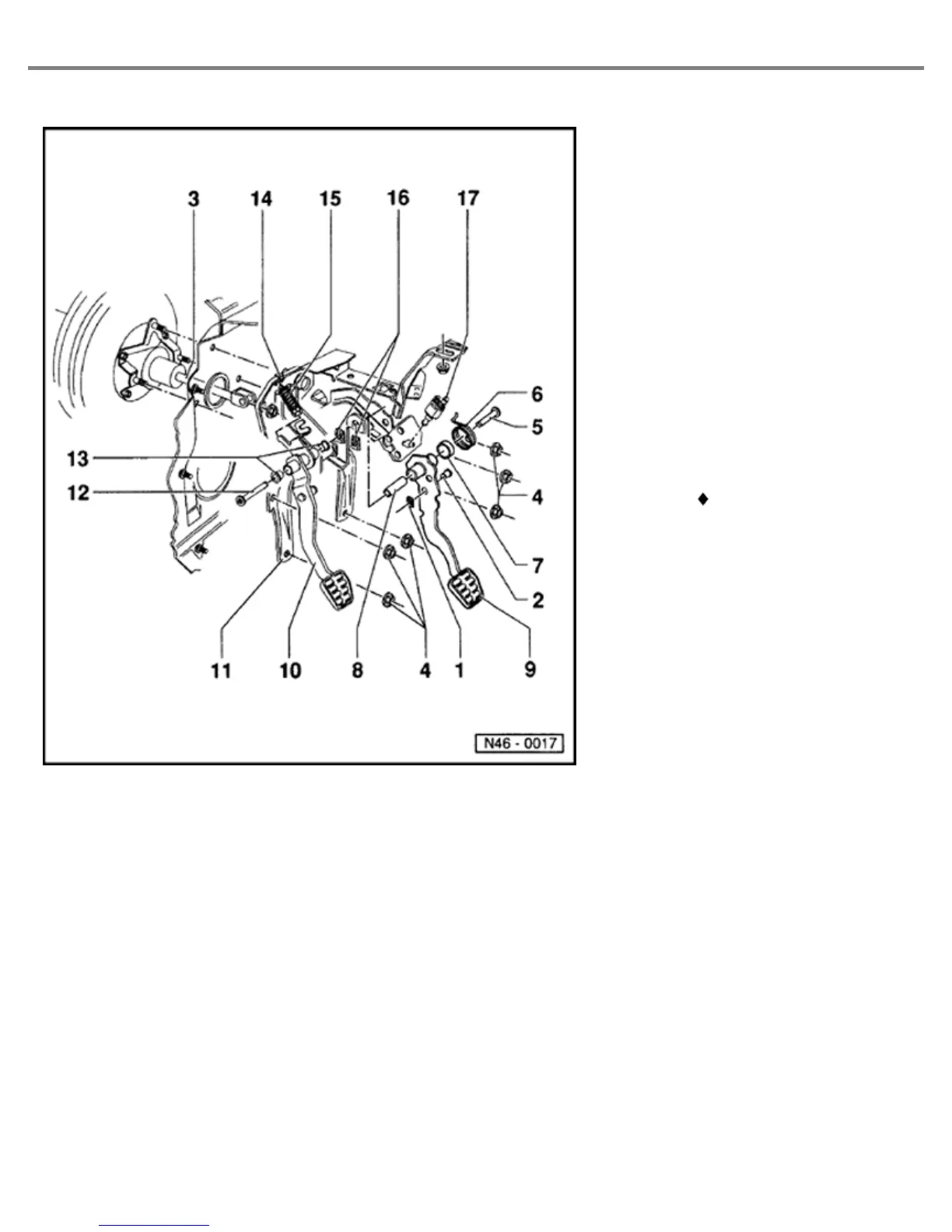

1 - Securing clip
Ensure securely
seated
2 - Pin
3 - Brake servo push rod
clevis
4 - Self-
locking hex nut, 20
Nm (15 ft lb)
5 - Brake pedal pivot pin
Page
5
of
9
