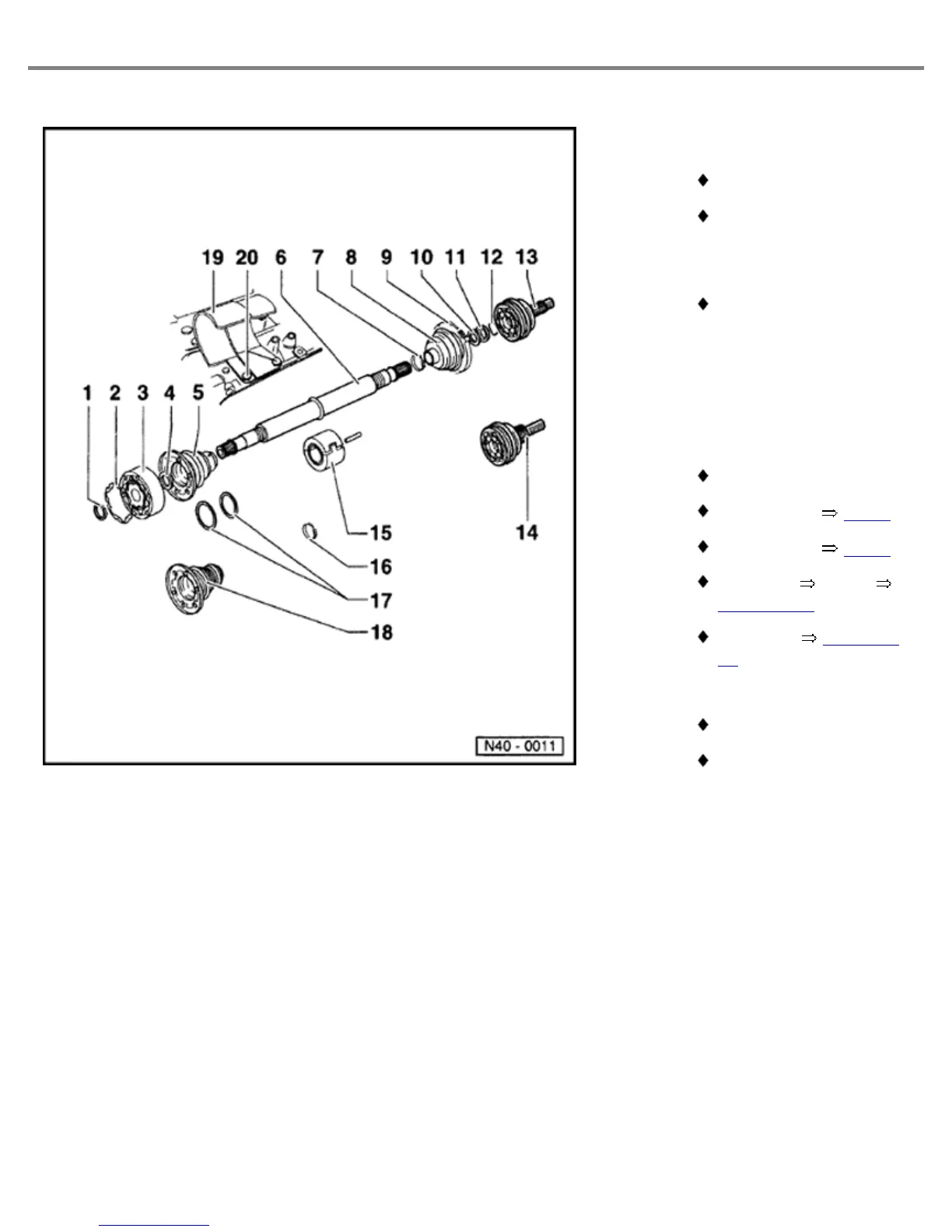

1 - Circlip
Always replace
Remove and install
with VW161 a
2 - Gasket
Always replace. Pull
off protective foil and
stick onto joint. (Only
on 100 mm diameter
constant velocity joints
3 - Inner constant velocity
joint 100 mm diameter
Only replace complete
Pressing off Fig. 3
Pressing on Fig. 4
Greasing Notes
Page 40-46
Checking Page 40-
62
4 - Dished washer
Inner diameter splined
Installation position:
outer diameter
(concave side)
contacts constant
velocity joint
Page
47
of
82
Front Wheel Suspension, Shafts and Axle
