Girling front brake
caliper, servicing
Note:
When repairing install all
parts supplied in repair kit.
Apply thin coat of brake
cylinder paste to brake
cylinders, pistons and
sea/s.

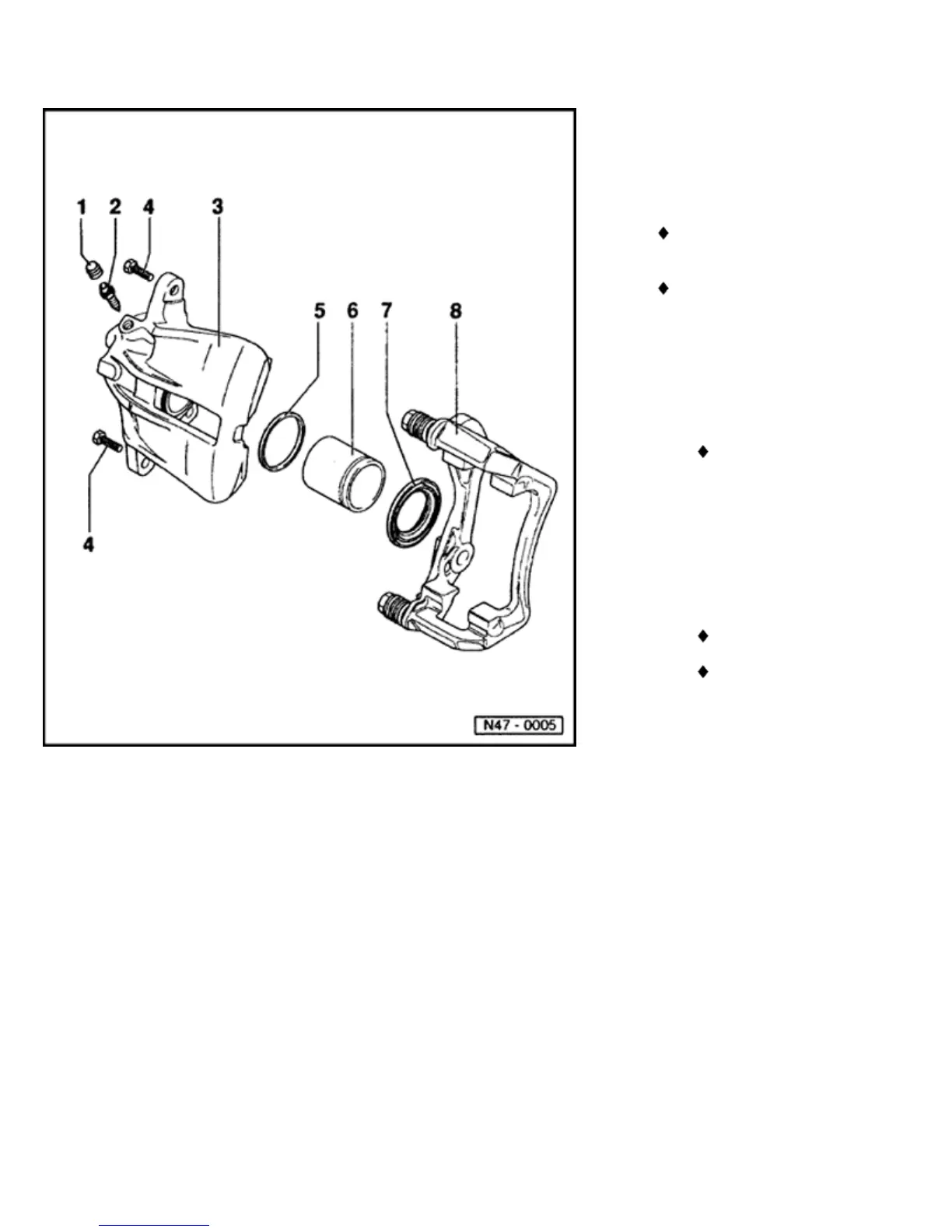

1 - Protective seal
2 - Bleed valve
Apply thin coat of
brake cylinder paste to
threads before
screwing in
3 - Brake caliper housing
4 - Self-locking hex bolt,
35 Nm (26 ft lb)
Always replace
When loosening and
tightening counter-
hold
on guide pin
