Connect segment corners of bonded rubber mounting
metal core with a line.
The continued line must pass through the center of
hole (arrow).
Note:
The kidney-shaped recess must be pointing in
direction of travel when viewed from the center of
vehicle.

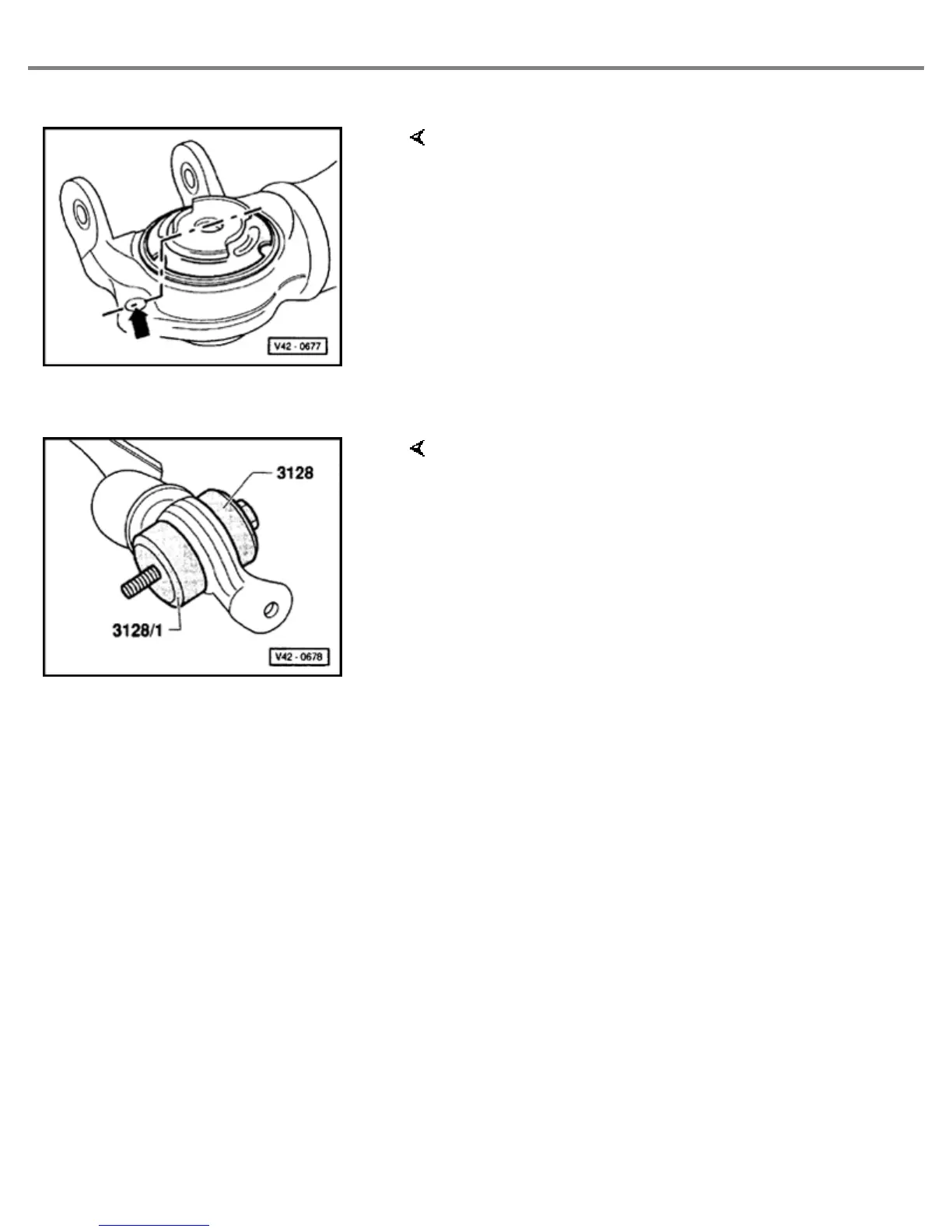

Fig. 10 Installation position, determining
Place one half of the rubber bonded mounting in
correct position and pull in with tool 3128 and 3128/1.
Then place 2nd half in position and pull in.
Fig. 11 Rubber bonded mounting, installing
Page
11
of
13
Rear axle, servicing (four wheel drive vehicles)
12/7/2004
