40-74

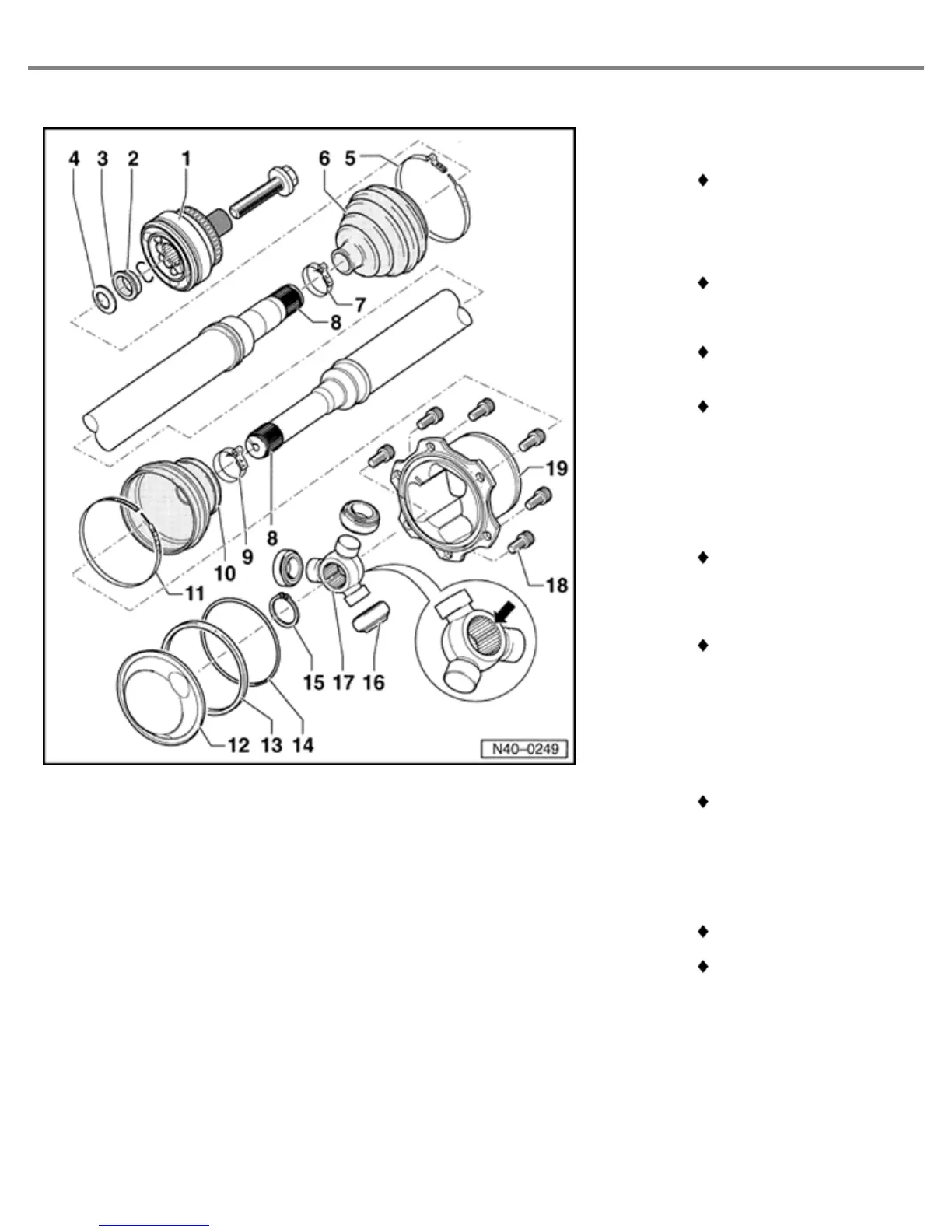

9 - Clamp
For triple-rotor joint
10 - Boot
11 - Clamp
For triple-rotor joint
12 - Cover
Destroyed when
disassembling
No longer required for
assembly; not
available as
replacement part
13 - Rectangular sealing
ring
Included in repair kit;
not used in production
14 - O-ring
Not required for
assembly
15 - Circlip
16 - Roller
17 - Triple-rotor star
Chamfer -arrow- goes
onto axle shaft splines
first
18 - Multi-point socket-
head bolt
M10 x 20
80 Nm (59 ft lb)
19 - Housing
Page
74
of
82
Front Wheel Suspension, Shafts and Axle
