Volkswagen Passat 1996 User Manual

40-28

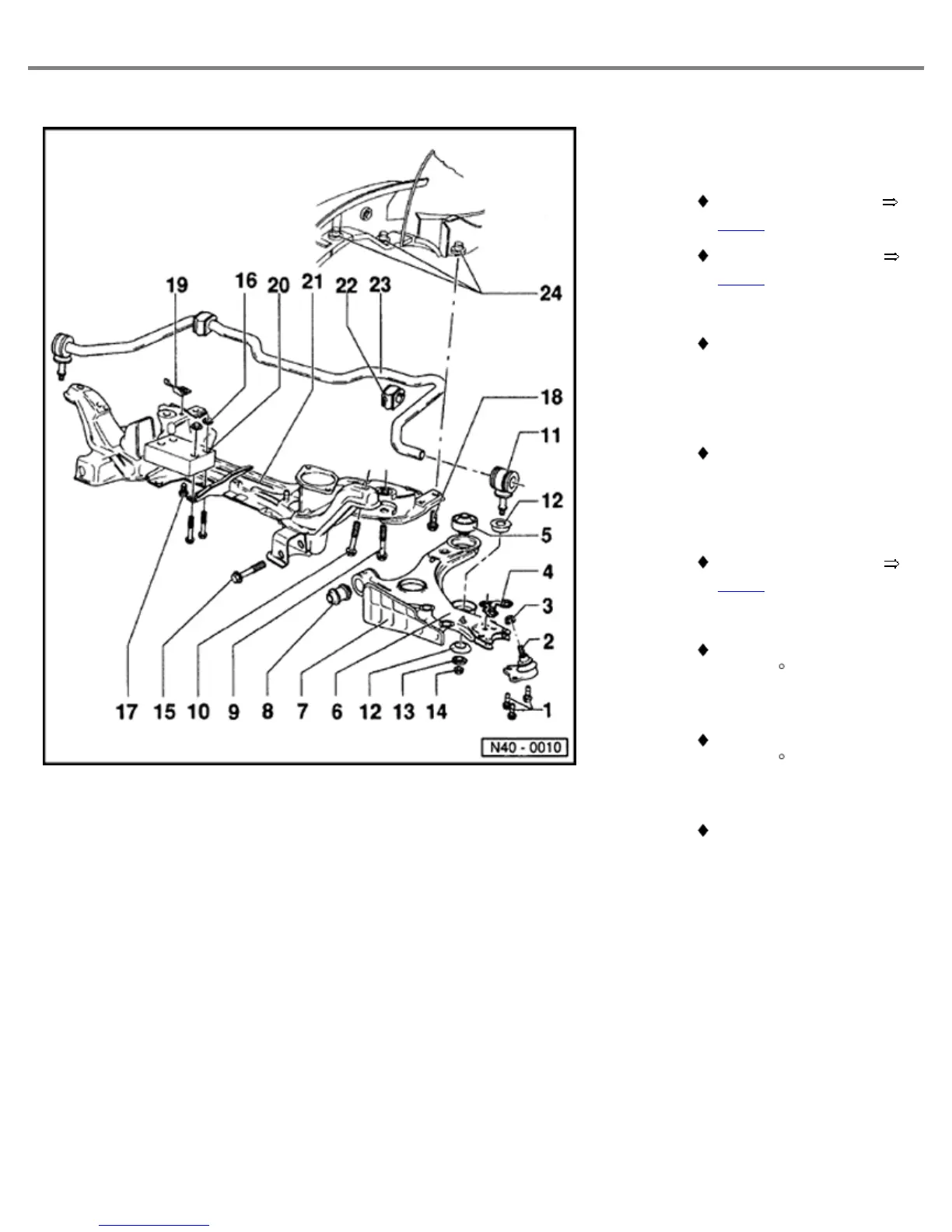

5 - Control arm rear
mounting
Installation position
Fig. 2
Pressing out and in
Fig. 3
6 - Control arm
Elongated holes are
not for camber
adjustment!
7 - Air guide plate
Secured to control arm
by clip
8 - Control arm front
mounting
Pressing out and in
Fig. 1
9 - Hex bolt M 12 x 1.5 x 78
70 Nm (52 ft lb) and
turn 90 further
10 - Hex bolt M 12 x 1.5 x 65
70 Nm (62 ft lb) and
turn 90 further
11 - Connecting link
With rubber mounting
Page
28
of
82
Front Wheel Suspension, Shafts and Axle
12/7/2004
