Volkswagen Passat 1996 User Manual

42-14

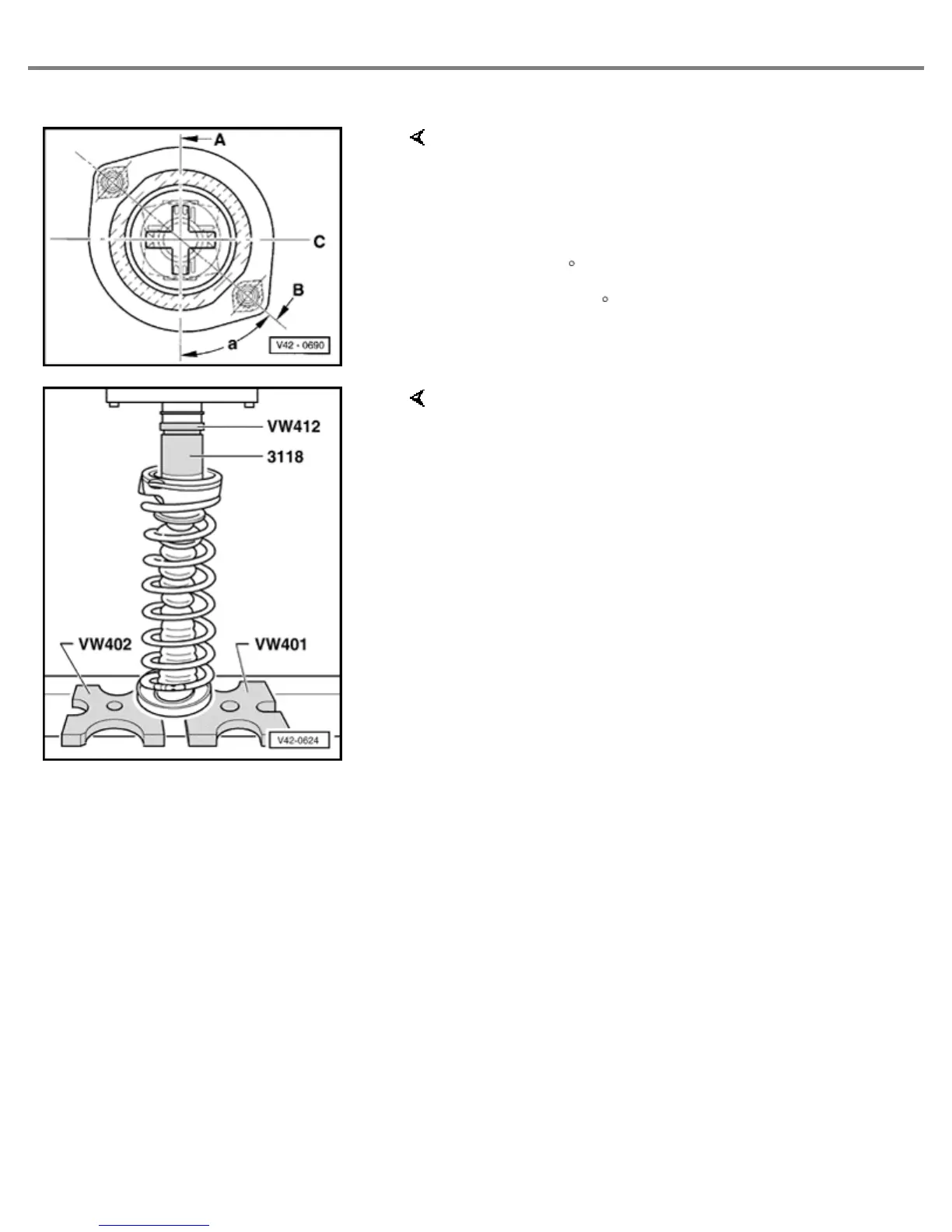

Fig. 3 Suspension strut mounting to shock
absorber bushing, aligning
A - Shock absorber bushing axis
B - Suspension strut mounting axis
"a" 50
C - Cap axis 90 offset to shock absorber bushing
axis -A-.
Fig. 4 Cap in suspension strut mounting,
pressing in.
Page
14
of
14
Rear Wheel Suspension, Shafts and Axle
12/7/2004
