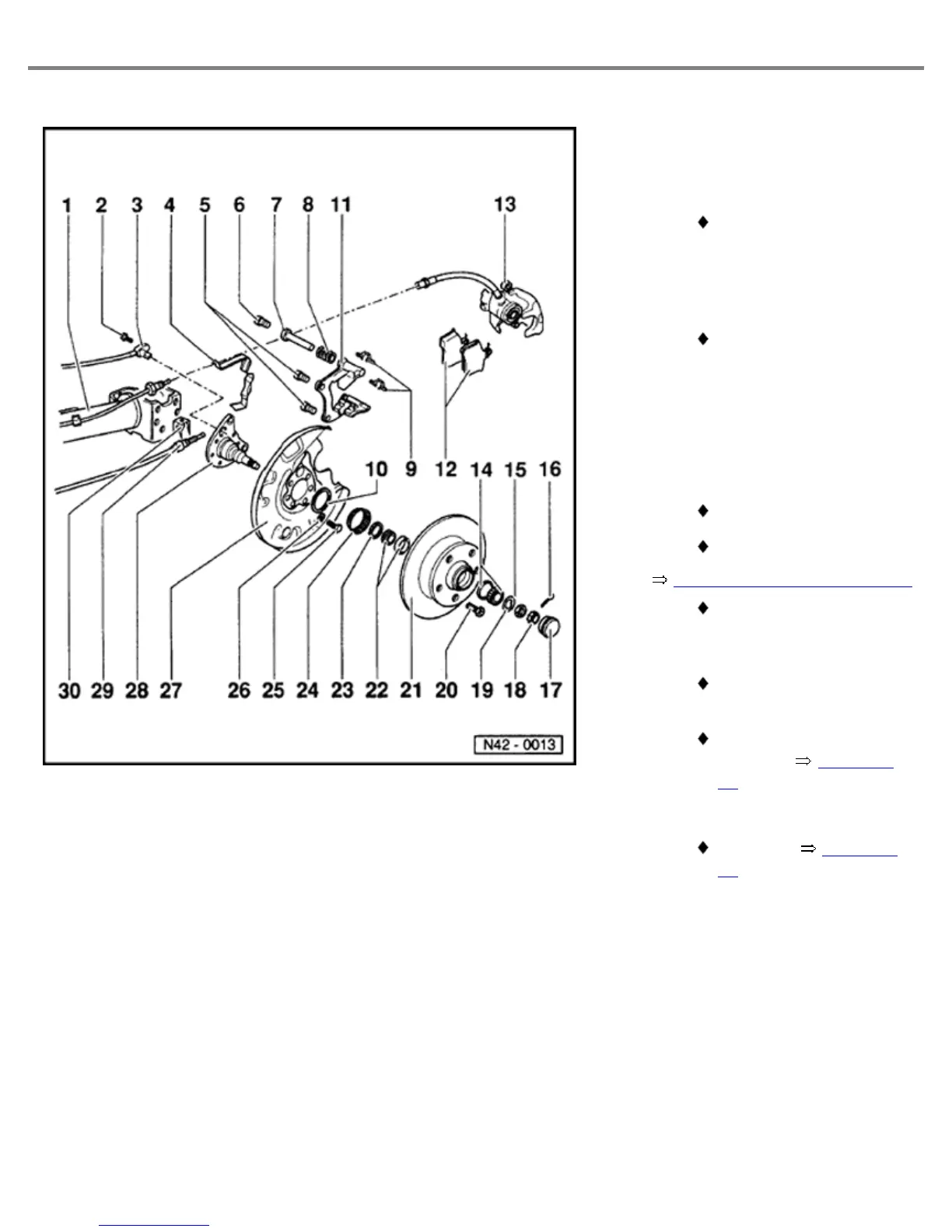

11 - Brake carrier with
guide pins and
protective cap
Supplied as
replacement part
assembled with
sufficient grease on
guide pins
If protective caps or
guide pins are
damaged use repair
kit. Use grease packet
supplied to lubricate
guide pins.
12 - Brake pads
Thickness: 12 mm
Checking thickness:
Wear limit: 7mm
(including backing
plate)
Always replace on
both sides
Removing and
installing Page 46-
33
13 - Brake caliper
Servicing Page 47-
15
Page
3
of
10
Rear wheel brakes, servicing (disc brakes)
