ENGINE
3-12

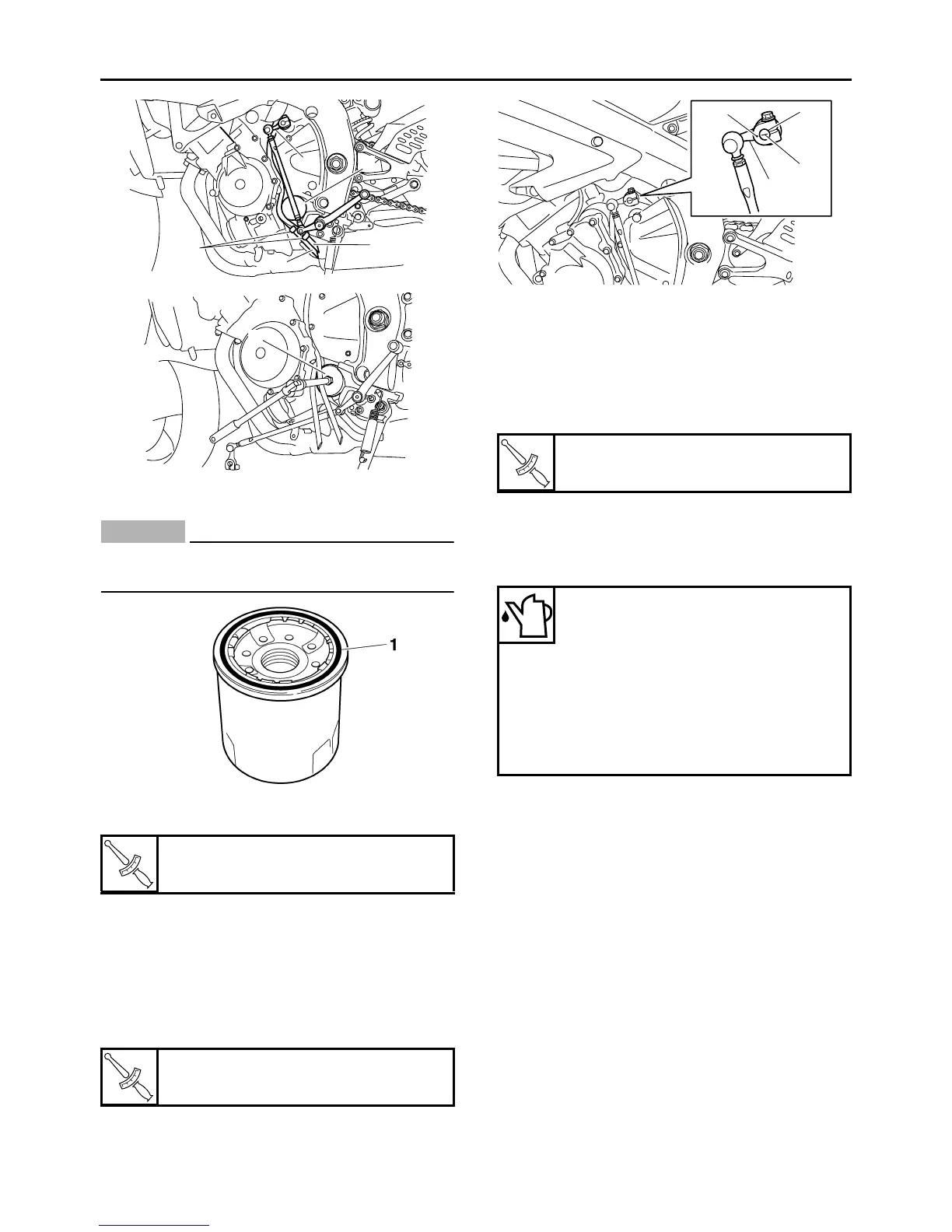

d. Lubricate the O-ring “1” of the new oil filter
cartridge with a thin coat of engine oil.
CAUTION:
EC2C01006
Make sure the O-ring “1” is positioned cor-
rectly in the groove of the oil filter cartridge.
e. Tighten the new oil filter cartridge to specifi-
cation with an oil filter wrench.
f. Insert the fuel tank breather hose (except for
California) and fuel tank overflow hose into
the guide and place them in their original po-
sition.
g. Install the shift arm “1” by aligning the match
mark “a” on the shift arm with the match mark
“b” on the shift shaft “2”.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
8. Check:
• Engine oil drain bolt gasket
Damage → Replace.
9. Install:
• Engine oil drain bolt
(along with the gasket)
10.Fill:
• Crankcase
(with the specified amount of the recom-
mended engine oil)
11.Install:
• Engine oil filler cap
12.Start the engine, warm it up for several min-
utes, and then turn it off.
13.Check:
• Engine
(for engine oil leaks)
14.Check:
• Engine oil level
Refer to “CHECKING THE ENGINE OIL
LEVEL” on page 3-10.
EAS20820
MEASURING THE ENGINE OIL PRESSURE
1. Check:
• Engine oil level
Below the minimum level mark → Add the
recommended engine oil to the proper level.
T
R
.
.
Oil filter cartridge
17 Nm (1.7 m·kg, 12 ft·lb)
T
R
.
.
Shift arm bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
1
2
4
5
3
6
T
R
.
.
Engine oil drain bolt
43 Nm (4.3 m·kg, 31 ft·lb)
Engine oil quantity
Total amount
3.40 L (3.59 US qt) (2.99 Imp.qt)
Without oil filter cartridge re-
placement
2.40 L (2.54 US qt) (2.11 Imp.qt)
With oil filter cartridge replace-
ment
2.60 L (2.75 US qt) (2.29 Imp.qt)
2
bb
1
a
To Next Page
