THROTTLE BODIES
7-14
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
ET2C01009

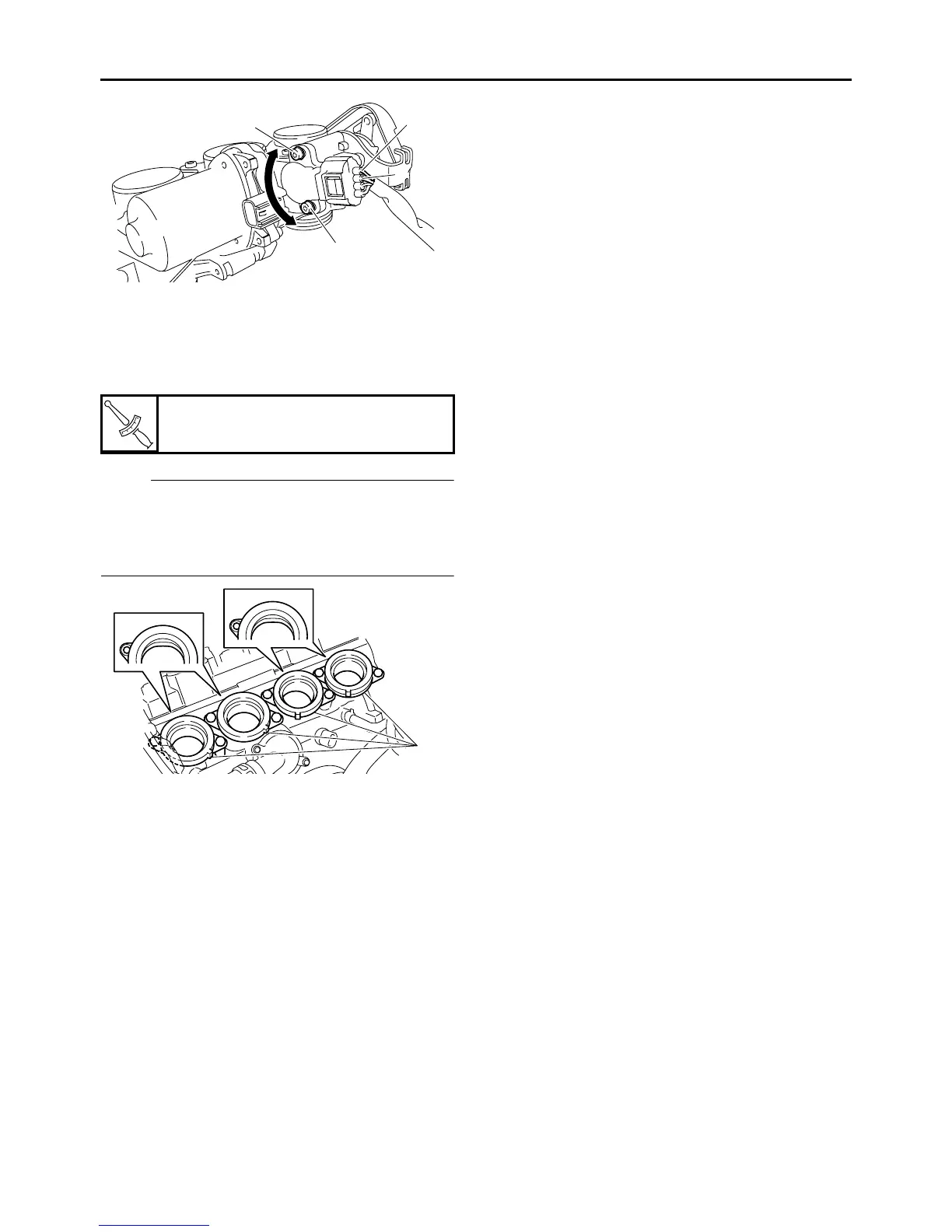

INSTALLING THE THROTTLE BODY JOINTS
1. Install:
• Throttle body joints “1”
NOTE:
Be sure to install the throttle body joints with the
“L” mark onto the throttle body openings for cyl-
inders #1 and #2 and the joints with the “R” mark
onto the openings for cylinders #3 and #4.
T
R
.
.
Throttle body joint bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
3
3
1
2
L
R
1
