FRONT FORK
4-44
EAS22950
FRONT FORK

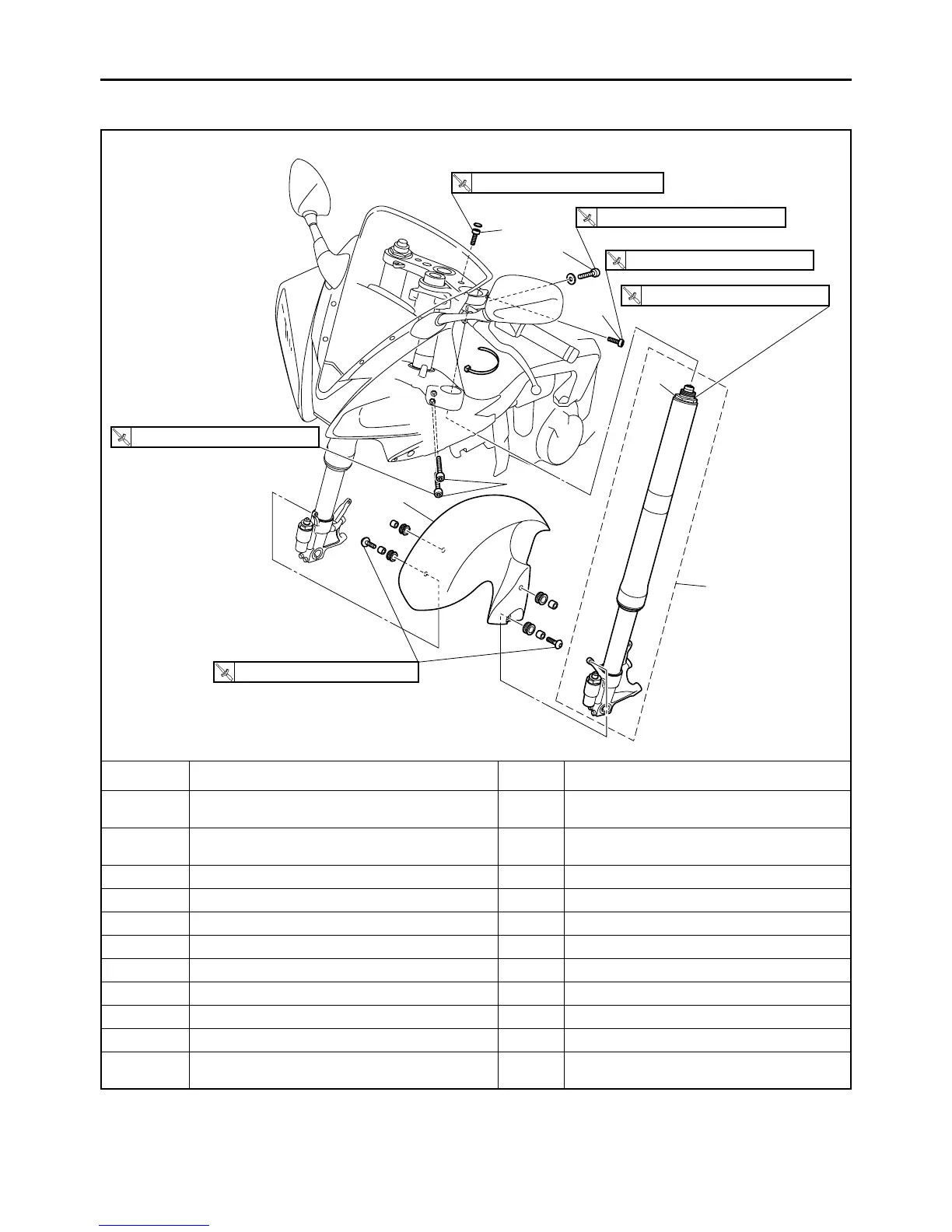

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Side panels
Refer to “GENERAL CHASSIS” on page
4-1.
Front wheel Refer to “FRONT WHEEL” on page 4-4.
1 Front fender 1
2 Upper bracket pinch bolt 1 Loosen.
3 Handlebar pinch bolt 1 Loosen.
4 Handlebar bolt 1 Loosen.
5 Cap bolt 1 Loosen.
6 Lower bracket pinch bolt 2 Loosen.
7 Front fork leg 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
R
.
.
20 Nm (2.0 m
•
kg, 14 ft
•
Ib)
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
T
R
.
.
26 Nm (2.6 m
•
kg, 19 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
4
5
7
1
3
6
2
