REAR WHEEL
4-15

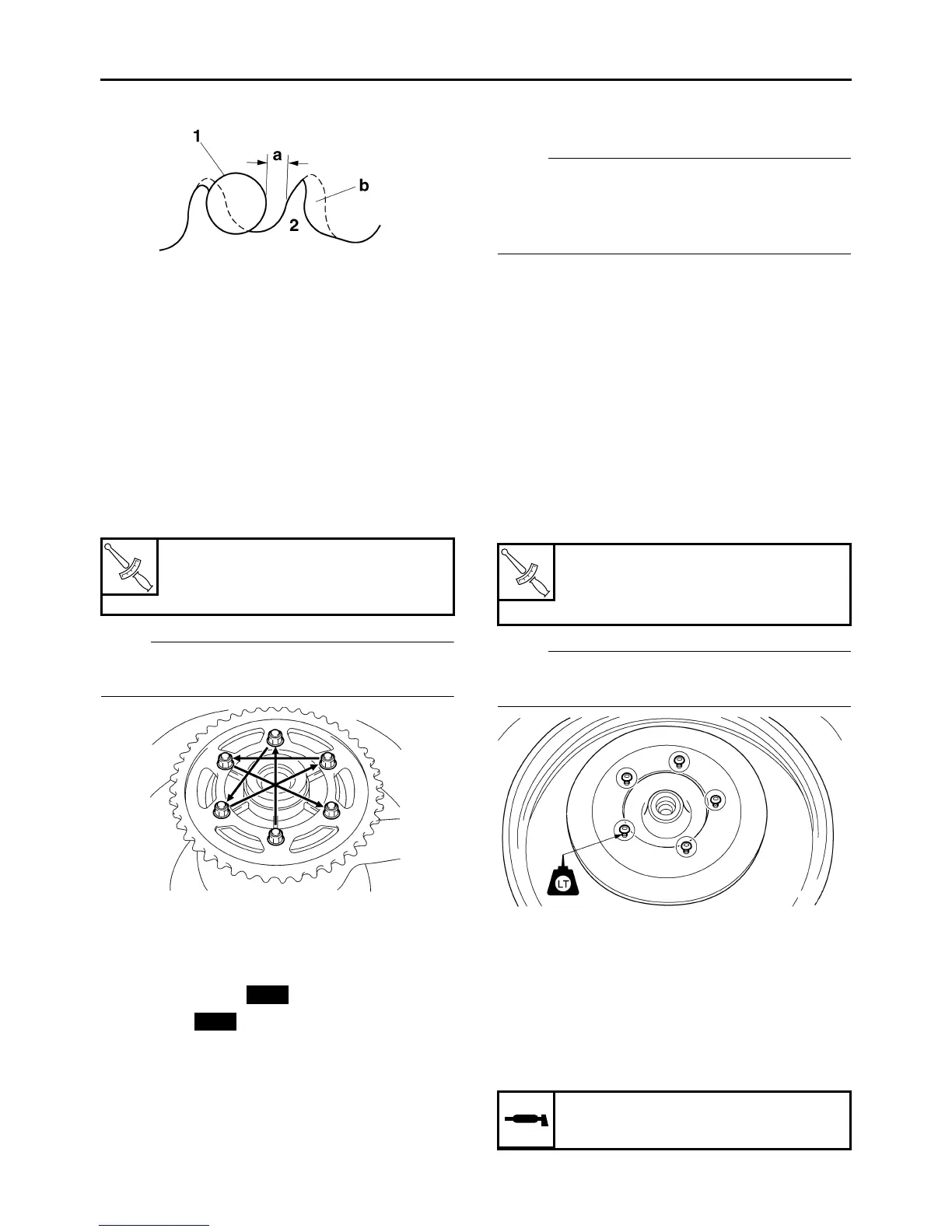

2. Replace:
• Rear wheel sprocket
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the self-locking nuts and the rear
wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact the
sprocket.
c. Install the new rear wheel sprocket.
NOTE:
Tighten the self-locking nuts in stages and in a
crisscross pattern.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS22140
ASSEMBLING THE REAR WHEEL
1. Install:
• Wheel bearings
• Oil seals
Refer to “ASSEMBLING THE FRONT
WHEEL” on page 4-8.
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
NOTE:
• After replacing the tire, wheel or both, the rear
wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
• Rear wheel static balance
Refer to “ADJUSTING THE FRONT WHEEL
STATIC BALANCE” on page 4-8.
ET2C01004
CHECKING THE REAR BRAKE DISC
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-34.
EAS22160
INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)
1. Install:
• Rear brake disc
NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-34.
3. Lubricate:
• Rear wheel axle
• Wheel bearings
• Oil seal lips
• Collars
b. Correct
1. Drive chain roller
2. Rear wheel sprocket
T
R
.
.
Rear wheel sprocket self-locking
nut
100 Nm (10.0 m·kg, 72 ft·lb)
New
New
T
R
.
.
Rear brake disc bolt
30 Nm (3.0 m·kg, 22 ft·lb)
LOCTITE
®
Recommended lubricant
Lithium-soap-based grease
To Next Page
