OIL COOLER
6-4
EAS26410
OIL COOLER

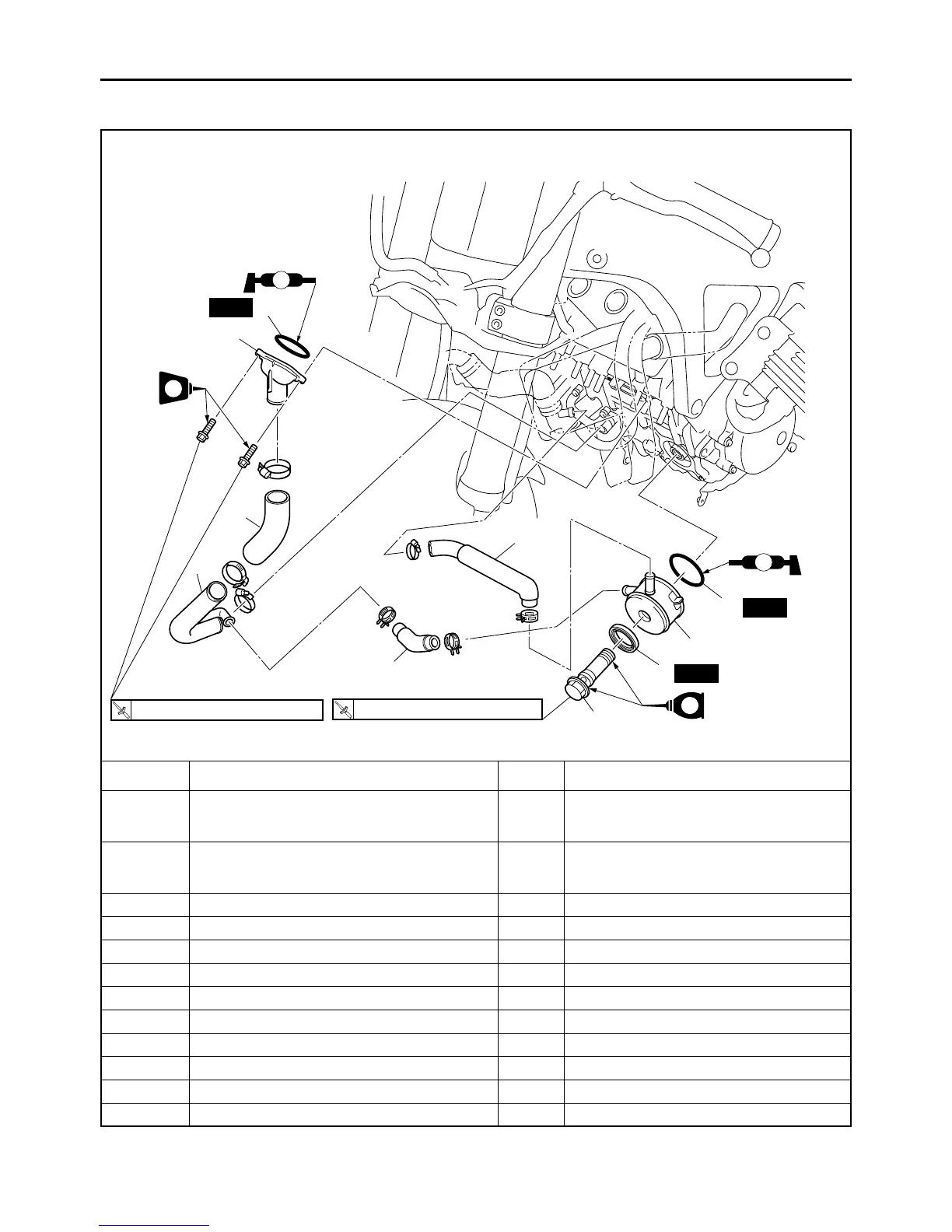

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-11.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
Exhaust pipe assembly Refer to “ENGINE REMOVAL” on page 5-1.
1 Oil cooler outlet hose 1
2 Oil cooler inlet hose 1
3 Water jacket joint 1
4O-ring 1
5 Water jacket joint inlet hose 1
6 Water pump outlet pipe 1
7 Oil cooler union bolt 1
8Gasket 1
9 Oil cooler 1
T
R
.
.
63 Nm (6.3 m
•
kg, 45 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LT
New
New
LS
LS
4
3
5
6
2
7
9
10
8
1
E
New
To Next Page
