GENERATOR AND STARTER CLUTCH
5-26
EAS24480

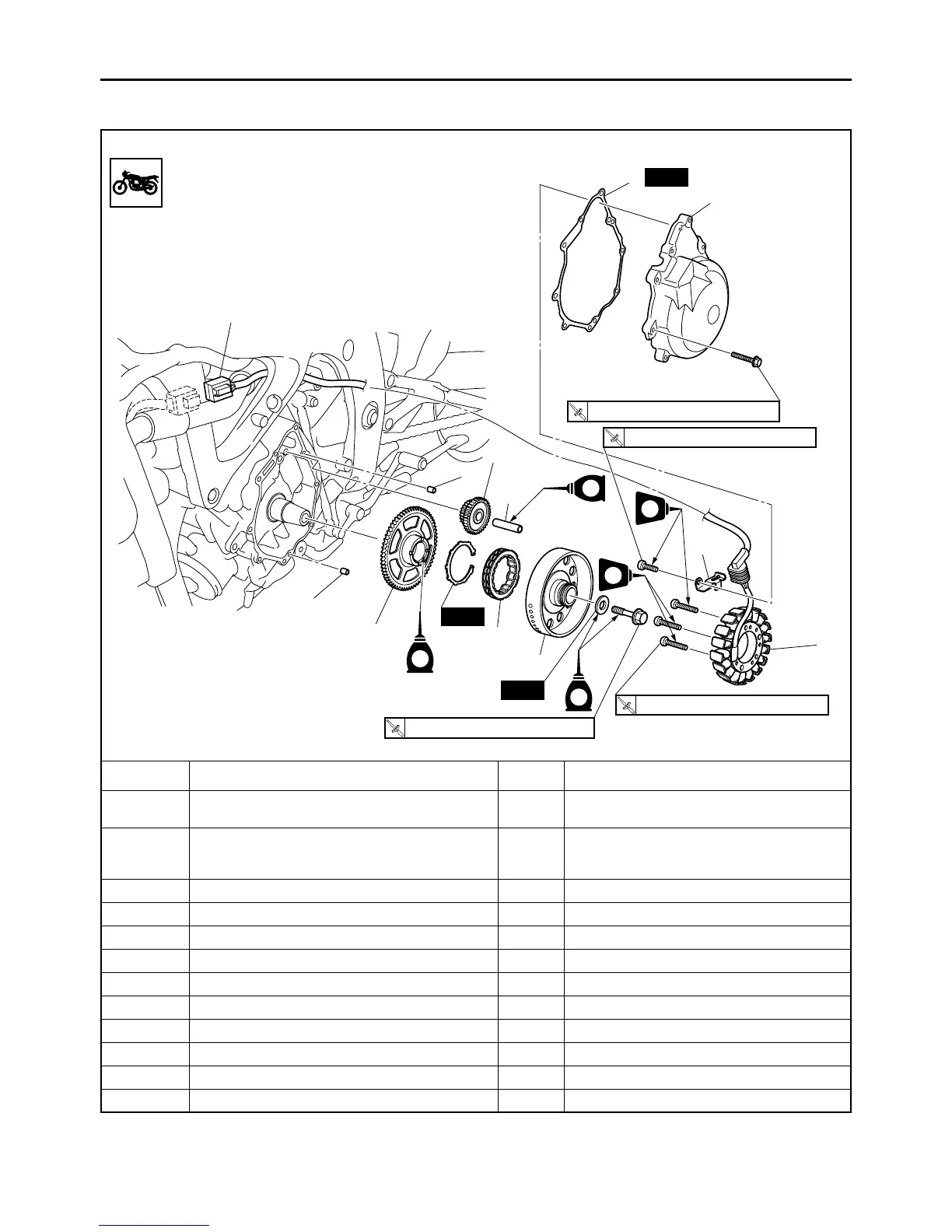

GENERATOR AND STARTER CLUTCH
Removing the generator and starter clutch
Order Job/Parts to remove Q’ty Remarks
Left bottom cowling
Refer to “GENERAL CHASSIS” on page
4-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-11.
1 Stator coil assembly coupler 1 Disconnect.
2 Generator cover 1
3 Generator cover gasket 1
4 Dowel pin 2
5 Stator coil assembly lead holder 1
6 Stator coil assembly 1
7 Starter clutch idle gear shaft 1
8 Starter clutch idle gear 1
9 Generator rotor 1
10 Starter clutch 1
3
2
6
5
4
8
7
11
10
9
4
1
New
New
New
LT
LT
E
(9)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
R
.
.
70 Nm (7.0 m
•
kg, 50 ft
•
lb)
E
E
