ELECTRIC STARTER
5-33
EAS24780
ELECTRIC STARTER

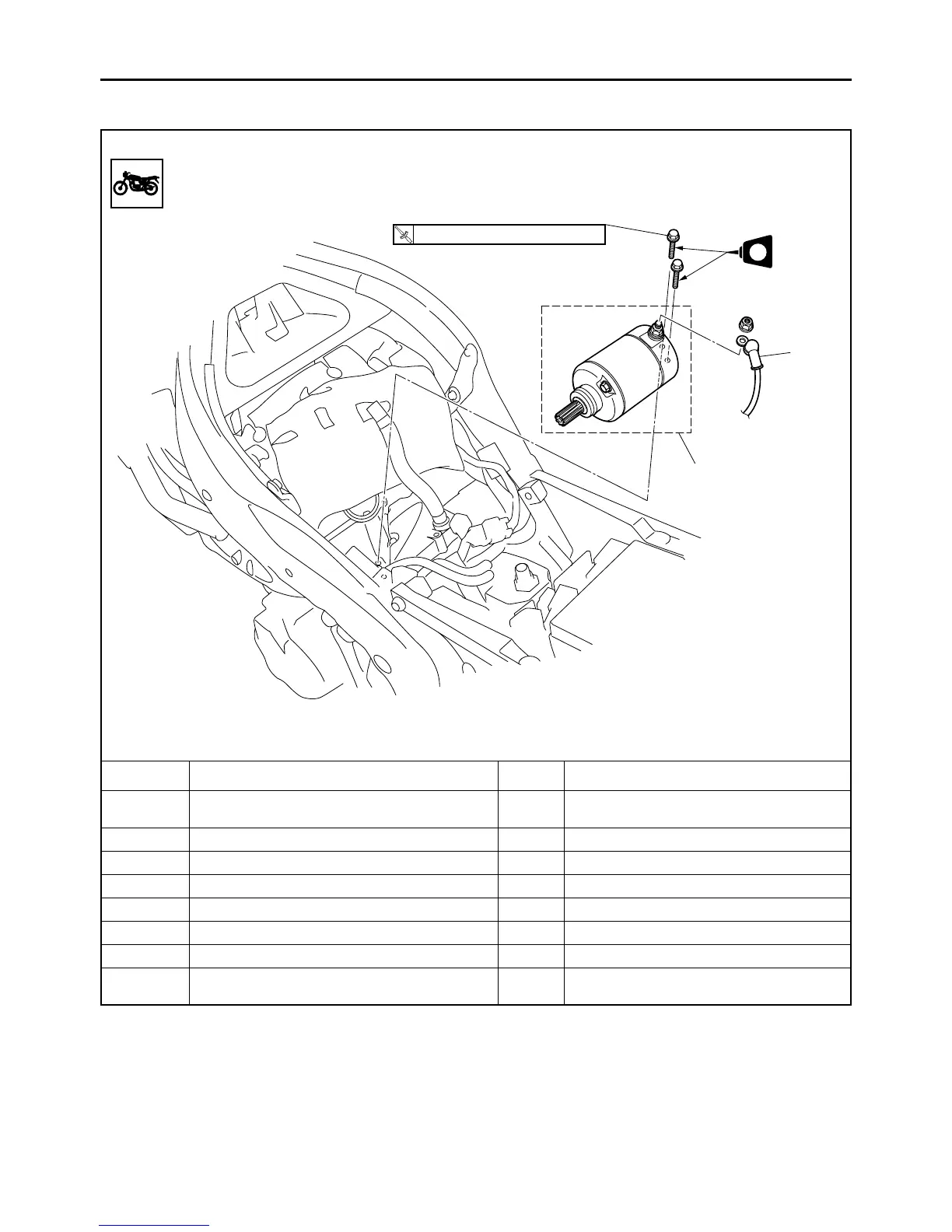

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS” on page
4-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Canister (for California only) Refer to “THROTTLE BODIES” on page 7-8.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Thermostat Refer to “THERMOSTAT” on page 6-7.
1 Starter motor lead 1
2 Starter motor assembly 1
For installation, reverse the removal proce-
dure.
1
2
LT
LT
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
To Next Page
