FUEL TANK
7-1
EAS26620

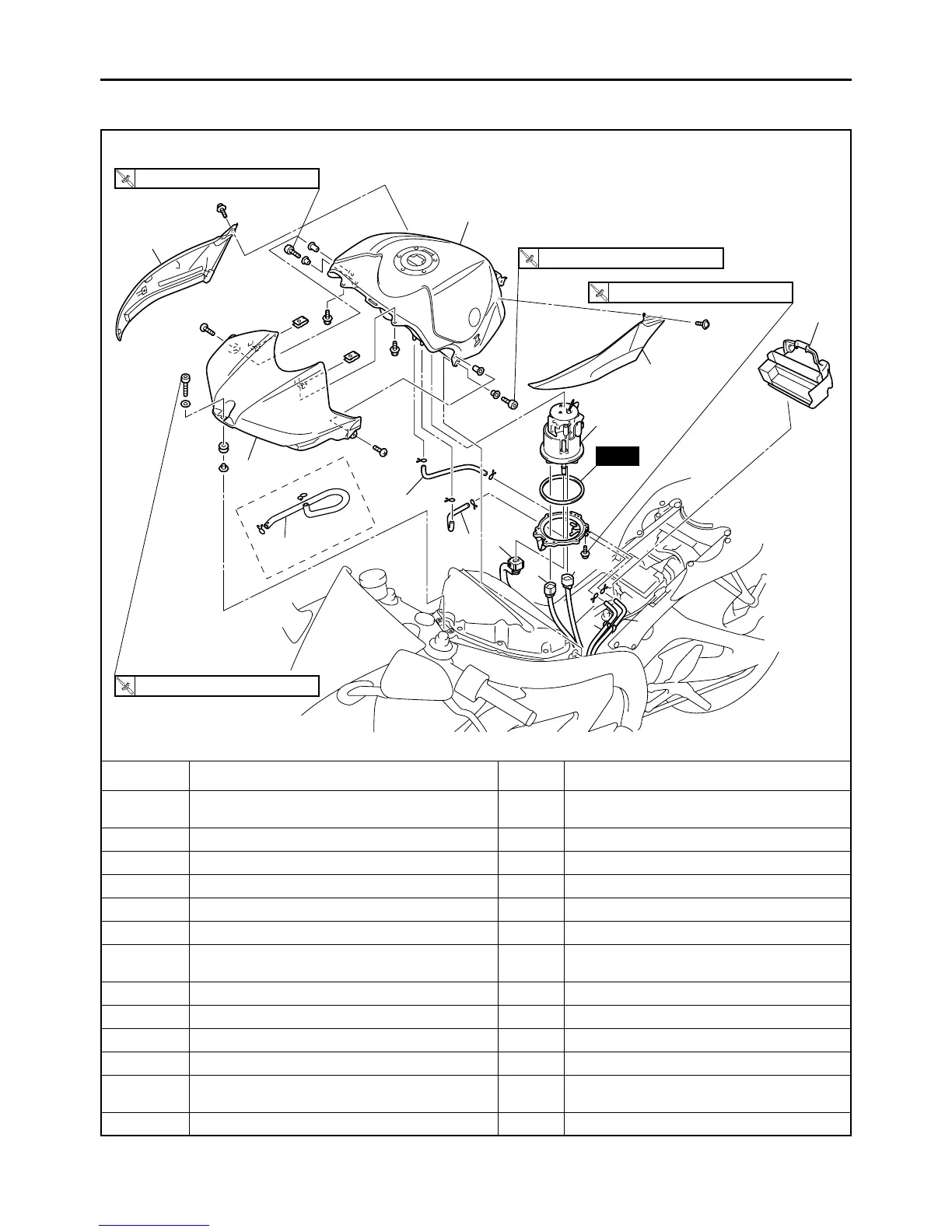

FUEL TANK
Removing the fuel tank and fuel pump
Order Job/Parts to remove Q’ty Remarks
Rider seat/Fuel tank bracket
Refer to “GENERAL CHASSIS” on page
4-1.
1 Fuel tank side cover 2
2 Fuel hose (fuel tank to primary injector fuel rail) 1 Disconnect.
3 Fuel sender coupler 1 Disconnect.
4 Fuel pump coupler 1 Disconnect.
5 Fuel tank overflow hose 1 Disconnect.
6 Fuel tank breather hose 1
Except for California
Disconnect.
7 Fuel tank 1
8 Fuel tank upper cover 1
9 Fuel tank overflow hose (fuel tank to hose joint) 1
10 Fuel tank breather hose (fuel tank to hose joint) 1 Except for California
11
Fuel tank breather hose (fuel tank to rollover
valve)
1 For California only
12 Fuel pump 1
11
4
(6)
12
6
3
5
2
9
1
8
10
7
13
1
New
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
R
.
.
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
T
R
.
.
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
