ENGINE
3-19
3. Install:
• Exhaust pipe assembly
Refer to “ENGINE REMOVAL” on page 5-1.
• Bottom cowlings
• Side cowlings
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21130

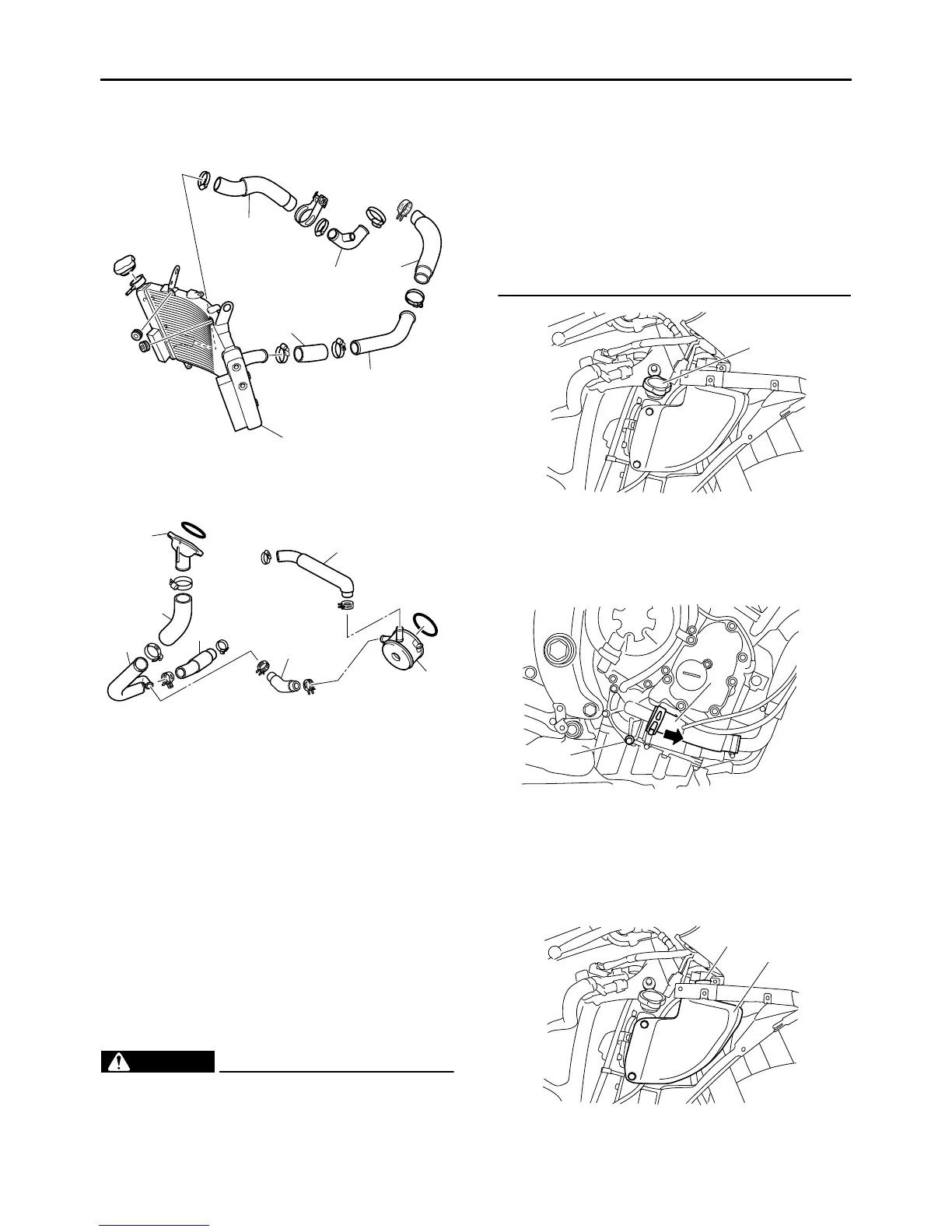

CHANGING THE COOLANT
1. Remove:
• Right side panel
• Right upper side cowling
• Right lower side cowling
• Right bottom cowling
Refer to “GENERAL CHASSIS” on page 4-1.
2. Remove:
• Radiator cap “1”
WARNING
EWA13030
A hot radiator is under pressure. Therefore,
do not remove the radiator cap when the en-
gine is hot. Scalding hot fluid and steam may
be blown out, which could cause serious in-
jury. When the engine has cooled, open the
radiator cap as follows:
Place a thick rag or a towel over the radiator
cap and slowly turn the radiator cap counter-
clockwise toward the detent to allow any re-
sidual pressure to escape. When the hissing
sound has stopped, press down on the radi-
ator cap and turn it counterclockwise to re-
move.
3. Remove:
• Coolant drain bolt (water pump) “1”
(along with the copper washer)
4. Disconnect:
• Water pump inlet hose “2”
5. Drain:
• Coolant
(from the engine and radiator)
6. Remove:
• Coolant reservoir “1”
• Coolant reservoir cap “2”
7. Drain:
• Coolant
(from the coolant reservoir)
3
5
4
6
1
2
13
12
10
11
9
7
8
1
1
2
2
1
