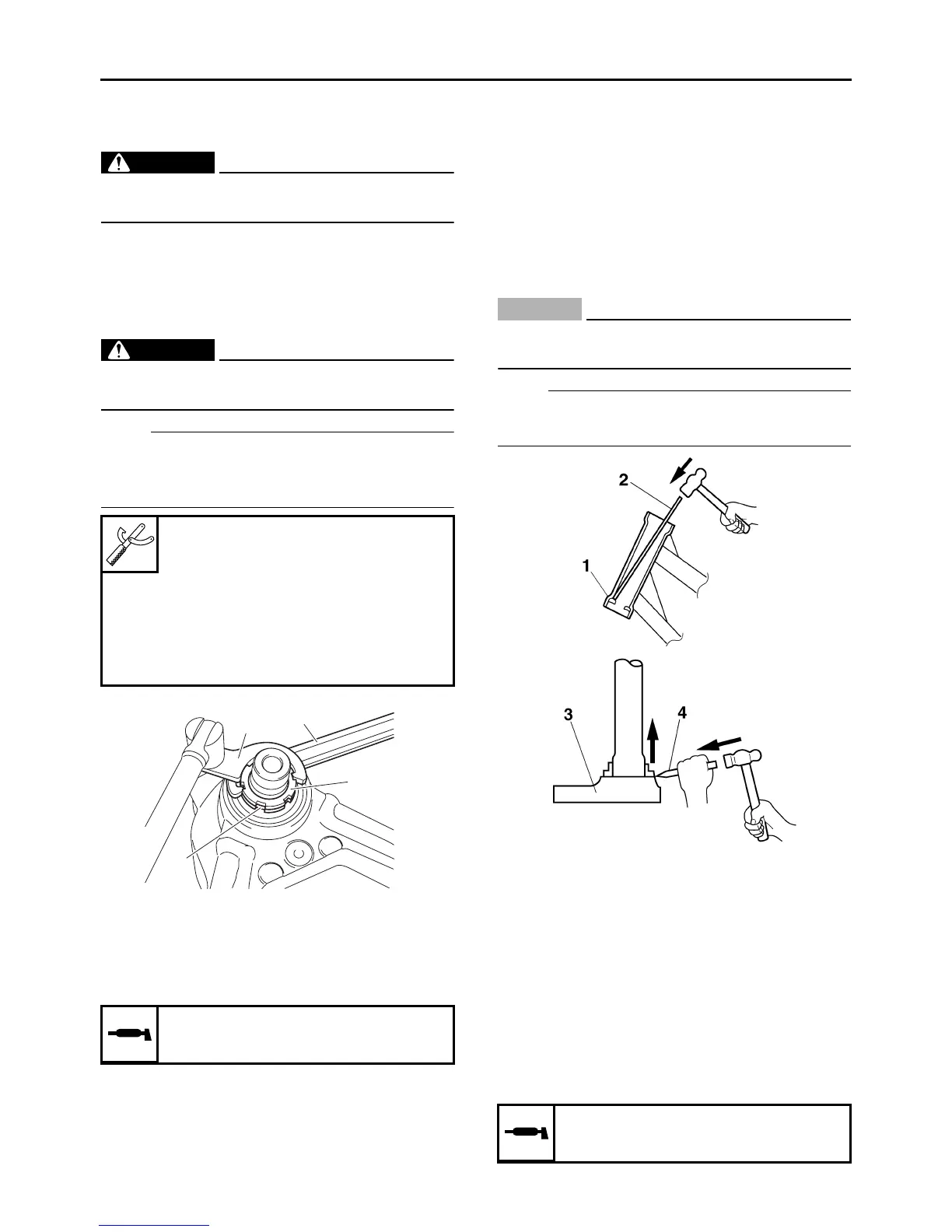

STEERING HEAD
4-58
EAS23110
REMOVING THE LOWER BRACKET
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Remove:
• Upper ring nut “1”
• Rubber washer
• Lower ring nut “2”
• Lower bracket
WARNING
EWA13730
Securely support the lower bracket so that
there is no danger of it falling.
NOTE:
Hold the lower ring nut with the ring nut wrench
“3”, and then remove the upper ring nut with the
steering nut wrench “4”.
EAS23120
CHECKING THE STEERING HEAD
1. Wash:
• Bearings
• Bearing races
2. Check:
• Bearings
• Bearing races
Damage/pitting → Replace.
3. Replace:
• Bearings
• Bearing races
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the bearing race from the steering
head pipe “1” with a long rod “2” and hammer.
b. Remove the bearing race from the lower
bracket “3” with a floor chisel “4” and ham-
mer.
c. Install new bearing races.
CAUTION:
ECA14270
If the bearing race is not installed properly,
the steering head pipe could be damaged.
NOTE:
Always replace the bearings and bearing races
as a set.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
4. Check:
• Upper bracket
• Lower bracket
(along with the steering stem)
Bends/cracks/damage → Replace.
EAS23140
INSTALLING THE STEERING HEAD
1. Lubricate:
• Upper bearing
• Lower bearing
• Bearing races
Ring nut wrench
90890-01268
Spanner wrench
YU-01268
Steering nut wrench
90890-01403
Spanner wrench
YU-33975
Recommended cleaning solvent
Kerosene
1
2
3
4
Recommended lubricant
Lithium-soap-based grease
