GENERAL CHASSIS
4-2

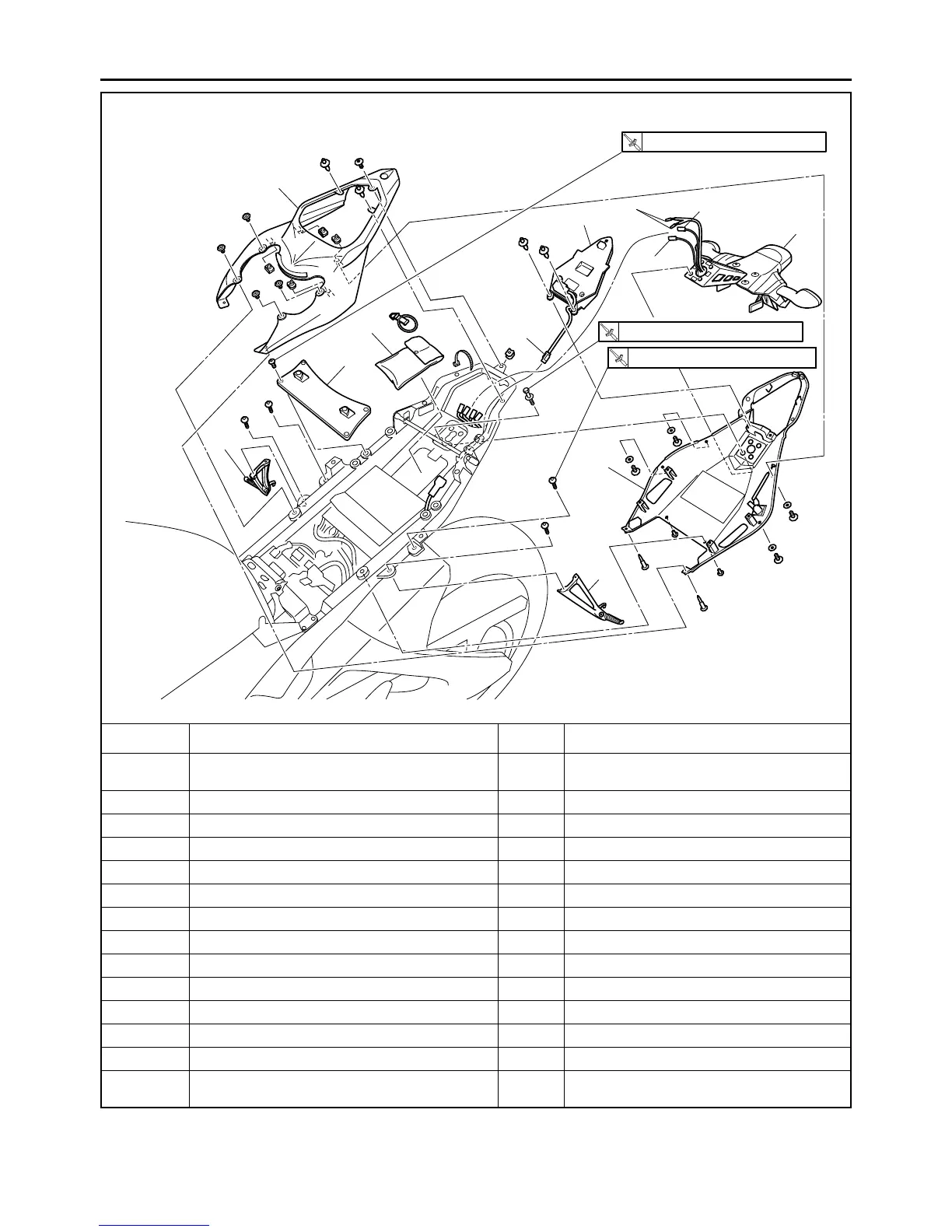

Removing the tail/brake light assembly
Order Job/Parts to remove Q’ty Remarks
Rider seat/Passenger seat
Refer to “GENERAL CHASSIS” on page
4-1.
1 Owner’s tool kit 1
2 Rear upper cowling 1
3 Rear right turn signal light coupler 1 Disconnect.
4 Rear left turn signal light coupler 1 Disconnect.
5 License plate light connector 2 Disconnect.
6 License plate light assembly 1
7 Rear upper cowling damper plate 1
8 Tail/brake light coupler 1 Disconnect.
9 Tail/brake light assembly 1
10 Right passenger footrest 1
11 Left passenger footrest 1
12 Rear lower cowling 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
28 Nm (2.8 m
•
kg, 20 ft
•
Ib)
2
8
12
1
10
6
9
4
3
5
7
11
(4)
(4)
