THROTTLE BODIES
7-9

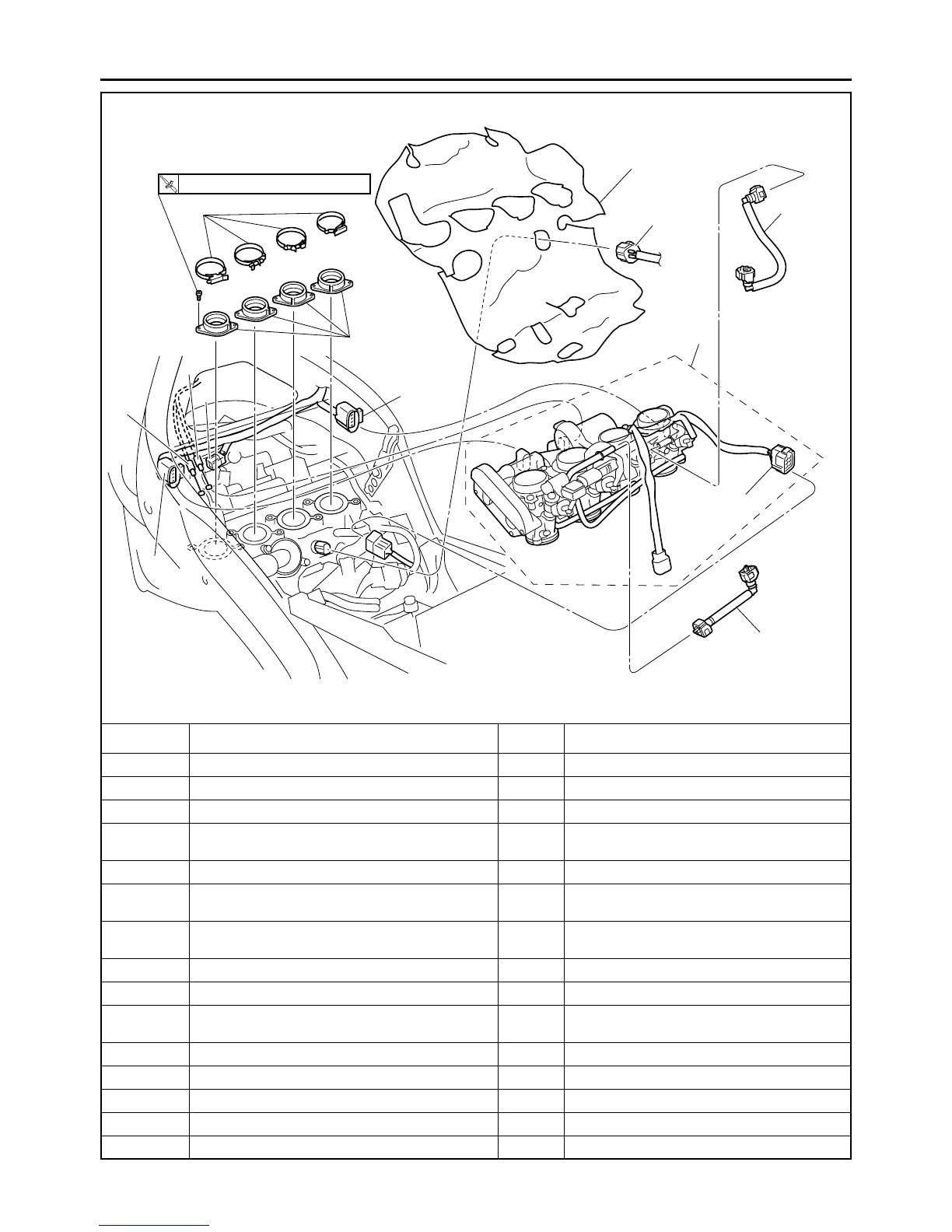

Removing the throttle body assembly
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Canister (for California only) Refer to “THROTTLE BODIES” on page 7-8.
Air induction system cover
Refer to “AIR INDUCTION SYSTEM” on
page 7-15.
1 Throttle servo motor coupler 1 Disconnect.
2
Throttle position sensor (for throttle cable pulley)
coupler
1 Disconnect.
3
Throttle position sensor (for throttle valves) cou-
pler
1 Disconnect.
4 Sub-wire harness 2 coupler 1 Disconnect.
5 Coolant temperature sensor coupler 1 Disconnect.
6
Fuel hose (primary injector fuel rail to second-
ary injector fuel rail)
1
7 Fuel hose (fuel tank to primary injector fuel rail) 1
8 Throttle cable (decelerator cable) 1
9 Throttle cable (accelerator cable) 1
10 Throttle body assembly 1
11 Throttle body joint clamp 4
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
7
10
3
2
1
5
8
(8)
11
4
12
6
9
13
To Next Page
