ELECTRIC STARTER
5-36
7. Check:
• Gear teeth
Damage/wear → Replace the gear.
8. Check:
• Bearing
• Oil seal
Damage/wear → Replace the defective
part(s).
EAS24800

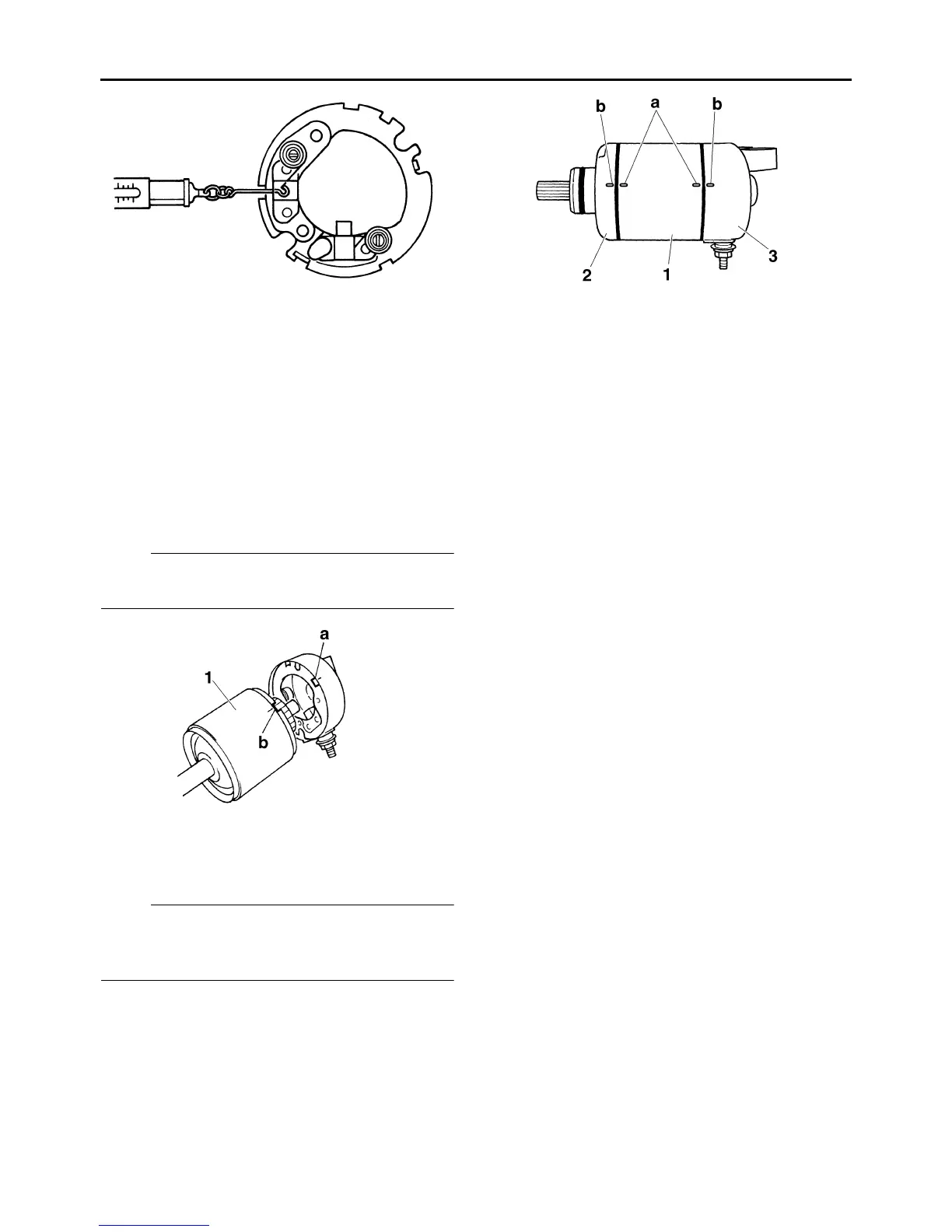

ASSEMBLING THE STARTER MOTOR
1. Install:
• Starter motor yoke “1”
NOTE:
Align the tab “a” on the brush holder with the slot
“b” in the starter motor yoke.
2. Install:
• Starter motor yoke “1”
• Starter motor front cover “2”
• Starter motor rear cover “3”
NOTE:
Align the match marks “a” on the starter motor
yoke with the match marks “b” on the front and
starter motor rear covers.
To Next Page
